| LED Type | SMD2835 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow, Orange, Pink, RGB |
| Voltage | 24 VDC |
| Wattage | 10W/M 12.5W/M
|
| Max Lumen @ 4000K 10W | 600LM/M |

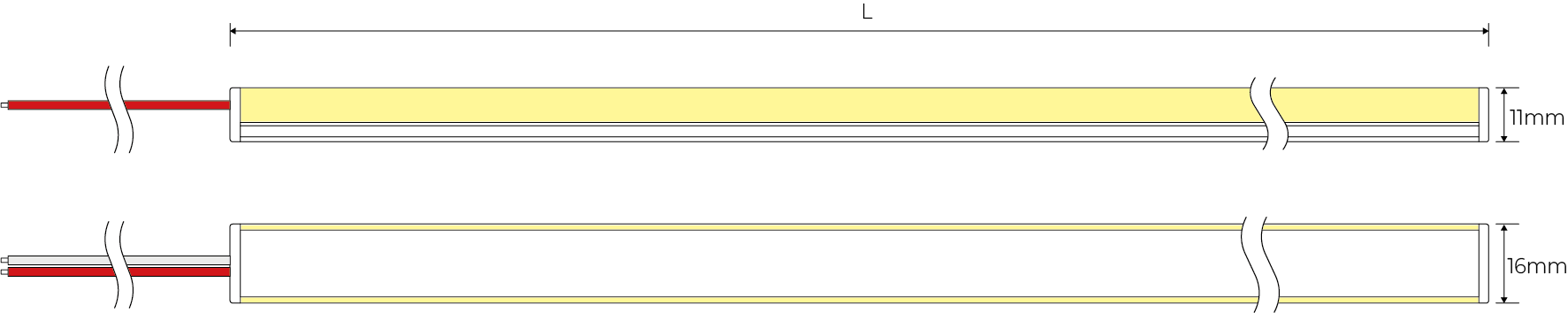

| Dimension | 12x16mm (W*H) |
| Cutting | 50mm @ single color/RGBW 62.5mm @ CCT Tunable 100mm @ RGB Pixel |
| Bending Type | Horizontal Bending |

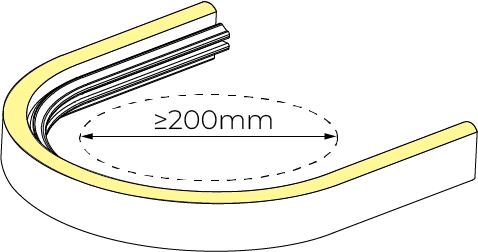

| Min Bend | 200mm |
| IP Rating | IP67 |
| Beam Angle | 204.4 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 45 ℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 13 meters @ 10W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
