| LED Type | SMD2835/3014/4040/5028 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow,Orange,Pink, RGB, RGBW |
| Voltage | 24 VDC |
| Wattage | 10W/M |
| Max Lumen @ 5000K 10W | 750LM/M |

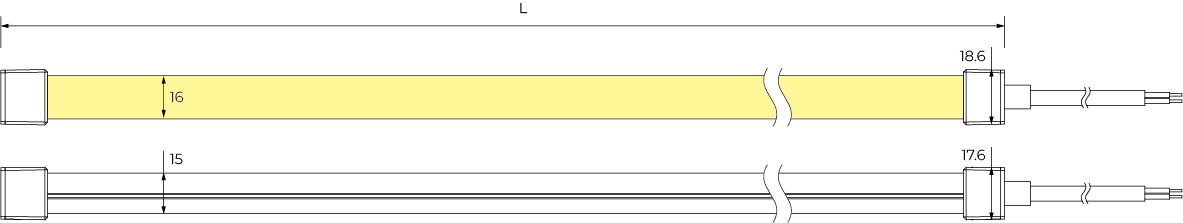

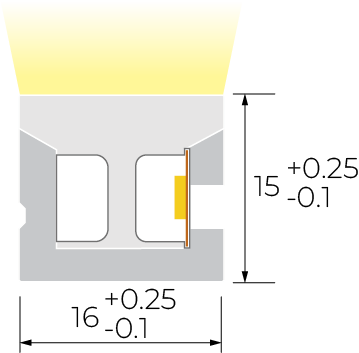

| Dimension | 16x15mm (W*H) |
| Cutting | 50mm @ single color
62.5mm @ RGB |
| Bending Type | Horizontal Bending |

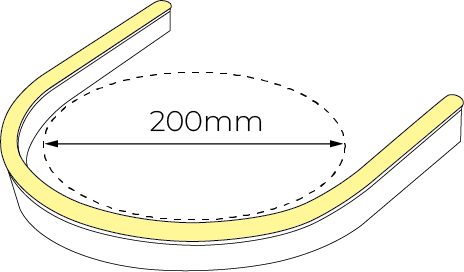

| Min Bend | 200mm |
| IP Rating | IP Rating |
| Beam Angle | 102.4 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 45℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 17 meters @ 10W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
| LED Type | SMD2835/3014/4040/5028 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow,Orange,Pink, RGB, RGBW |
| Voltage | 24 VDC |
| Wattage | 10W/M |
| Max Lumen @ 5000K 10W | 750LM/M |
| Dimension | 16x15mm (W*H) |
| Cutting | 50mm @ single color
62.5mm @ RGB |
| Bending Type | Horizontal Bending |
| Min Bend | 200mm |
| IP Rating | IP Rating |
| Beam Angle | 102.4 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 45℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 17 meters @ 10W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
Aluminium Profile
(1m/2m/3m) |
![资源 12]()
| ![资源 13]() |
|
Aluminium Mounting Clips
(2cm) |
![资源 15]()
|
|
Flexible Profile
(1m) |
![资源 16]()
| ![资源 16]()
|
|
PC Profile
(1m/2m/3m) | ![资源 18]() | ![资源 18]() |
|
Aluminium Profile
(1m/2m/3m) |
![资源 12]()
| ![资源 13]() |
|
Aluminium Mounting Clips
(2cm) |
![资源 15]()
|
|
Flexible Profile
(1m) |
![资源 16]()
| ![资源 16]()
|
|
PC Profile
(1m/2m/3m) | ![资源 18]() | ![资源 18]() |
|
