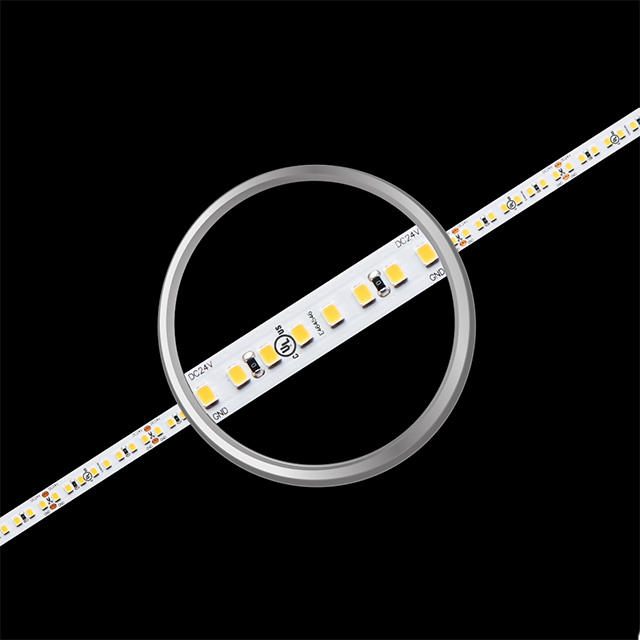

Luna Series are our middle power (10-20W) LED flexible strips. Compared with our Zodiac Series, Luna adopt advanced technique enhancing the brightness especially on the upgraded SMD 2835 LEDs. At the same time, you will see higher LED density like 120LEDs and 140LEDs in the Luna Series which will not only brings more lumen output but also more smooth and uniform light distribution.
LED Type
Samsung SMD2835
LED Quantity
160 LEDs Per Meter
CRI
≥80
Color Temperature
2700K / 3000K / 4000K / 6500K
Voltage
24VDC
Wattage
19.2W/M
Efficiency
160LM/W
Max Lumen @ 4000K
3340LM/M
PCB Width
10MM
Copper Quantity
3Oz.

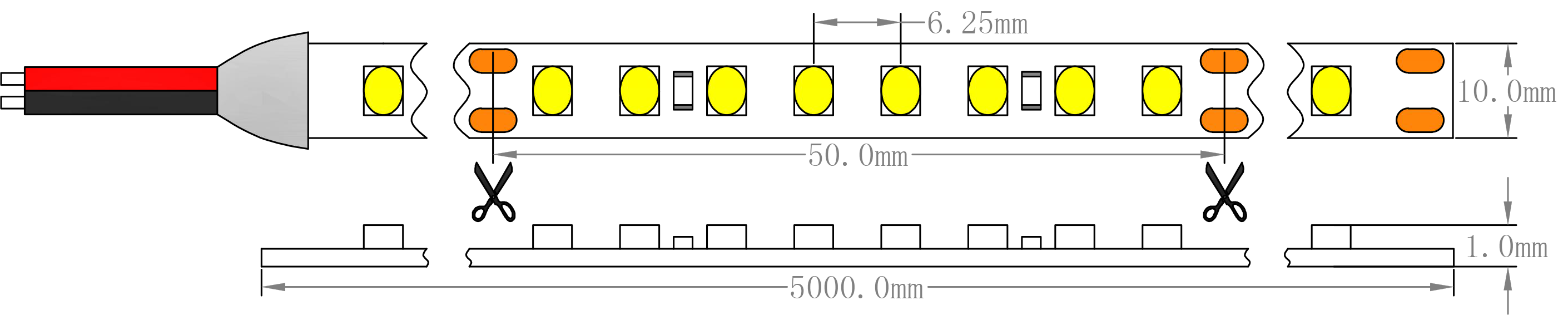

Cutting Length
55.5MM
IP Rating
IP43 / IP65 / IP66 / IP67 / IP68 / IPnano
Beam Angle
120 Degree
Temperature, Operating, Minimum
-35℃
Temperature, Operating, Maximum
60℃
Maximum Recommended Length
5 Meters
Lifetime
50,000 Hours
Certification
UL-E464546, CE, RoHS, FCC, C-tick
Warranty
5 Years
Adhesion
TESA 4965 / 3M Back Tape
Luna Series are our middle power (10-20W) LED flexible strips. Compared with our Zodiac Series, Luna adopt advanced technique enhancing the brightness especially on the upgraded SMD 2835 LEDs. At the same time, you will see higher LED density like 120LEDs and 140LEDs in the Luna Series which will not only brings more lumen output but also more smooth and uniform light distribution.
