Horizontal Bending 04x08mm Neon

  • OL-2216NPH-04x08mm6W-24024-W/R/G/B/Y/O

CCT:
Watt:
Voltage:
Availability:

Not just lighting source but a complete lighting fixture. There are flexible choices with various shapes and bending direction including horizontal bending and parallel one. Besides the COB series, you will also not see dots in the neon light. Hope you will enjoy the smooth and comfortable experience.

LED   TypeSMD2216
CRI>90
Color2000K  2400K  2700K  3000K  3500K   4000K  5000K  5500K  Red  Green  Blue  Yellow  Orange
Voltage24 VDC
Wattage6 W/M
Max Lumen @ 3000K  6W350 LM/M
Dimension04x08mm (W*H)
Cutting25mm
Bending TypeHorizontal Bending
Min Bend30mm
IP RatingIP67
Beam Angle117.2 degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum55℃
Maximum Recommended LengthCV type 5 meters
CertificationUL - E464546, CE, RoHS, FCC, C-tick
Warranty5 Years

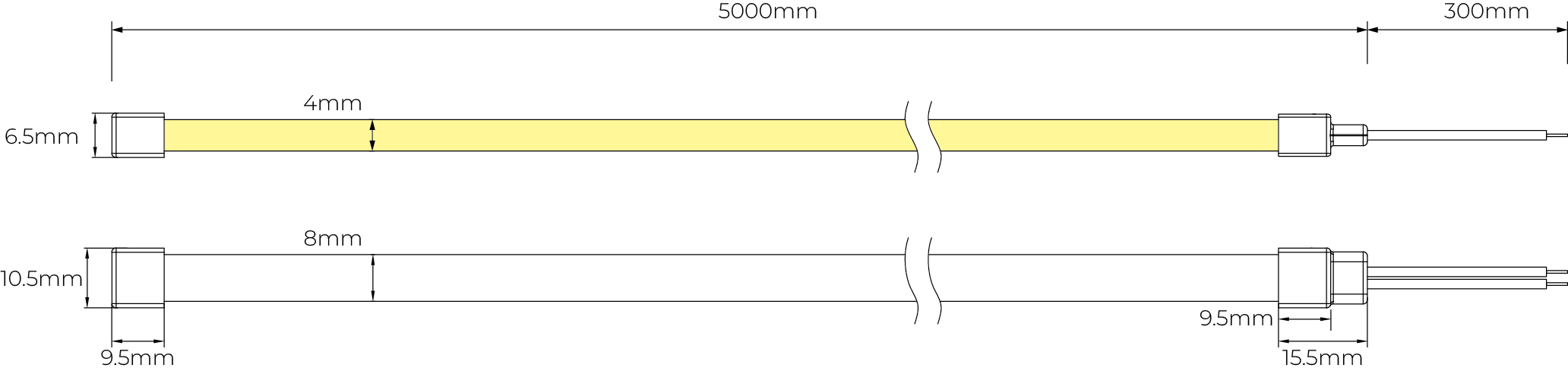

微信图片_20250528103137

资源 4 资源 5

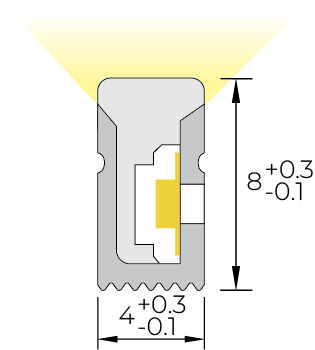

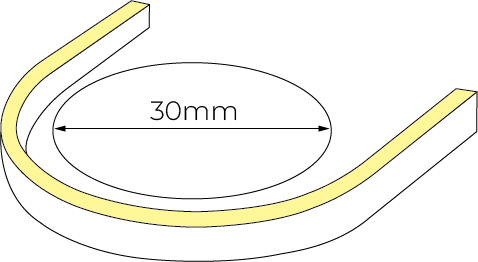

Min Bending Diameter Cross Section(mm)

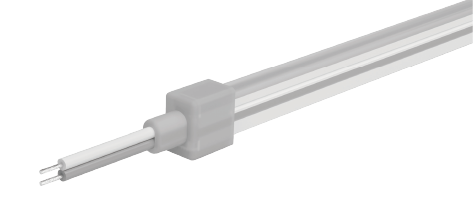

Silicone End Cap (IP65)

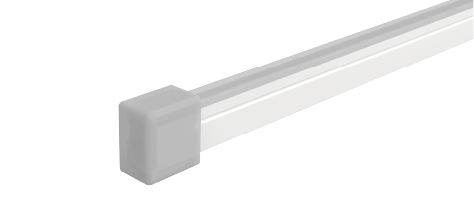

Front Entry Closed End Cap
资源 6 资源 7

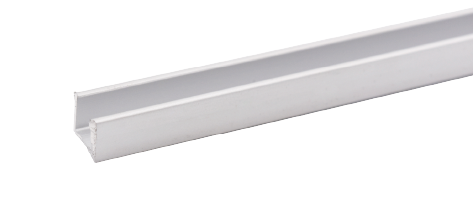

Aluminium Profile
(1m/2m/3m)

资源 8

资源 9

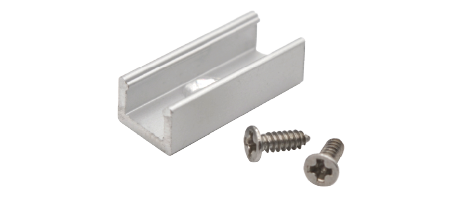

Aluminium Mounting Clips
(2cm)
资源 10
