Horizontal Bending 06x12mm Neon

  • OL-2216NPH-06x12mm10W-12024-W/R/G/B/Y/O/P

CCT:
Watt:
Voltage:
Availability:

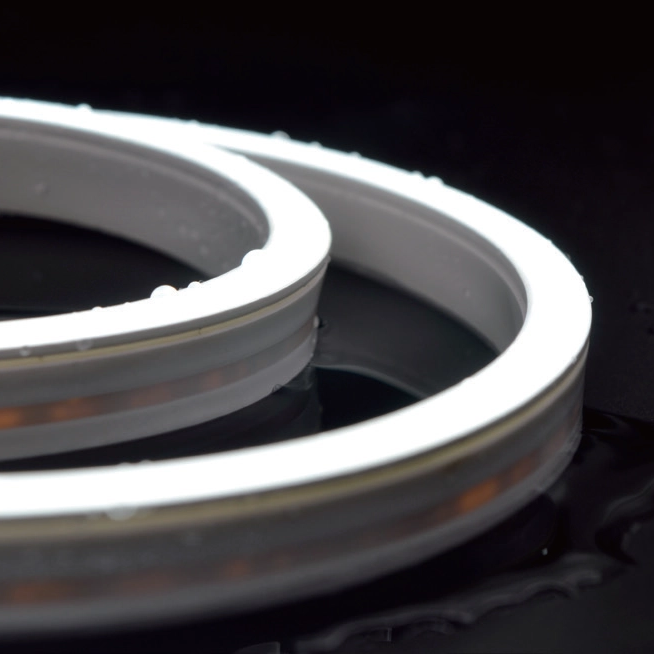

Not just lighting source but a complete lighting fixture. There are flexible choices with various shapes and bending direction including horizontal bending and parallel one. Besides the COB series, you will also not see dots in the neon light. Hope you will enjoy the smooth and comfortable experience.


LED   TypeSMD2216 / 4040
CRI>90
ColorWhite,   Red, Green, Blue, Amber, Pink, RGB
Voltage24   VDC
Wattage5W/M   10W/M
Max Lumen @ 6500K  10W360LM/M
Dimension6x12mm   (W*H)
Cutting50mm
Bending TypeHorizontal   Bending

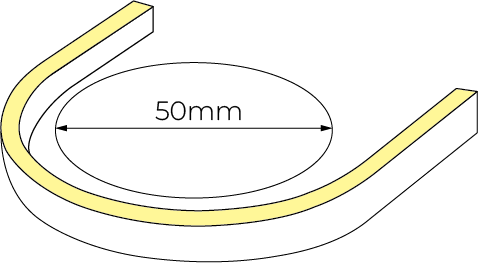

Min Bend50mm
IP RatingIP67
Beam Angle120   degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum60   ℃
Maximum Recommended LengthCV   type 5 meters; CC type 15 meters @ 5W
CertificationUL   - E464546, CE, RoHS, FCC, C-tick
Warranty3   Years

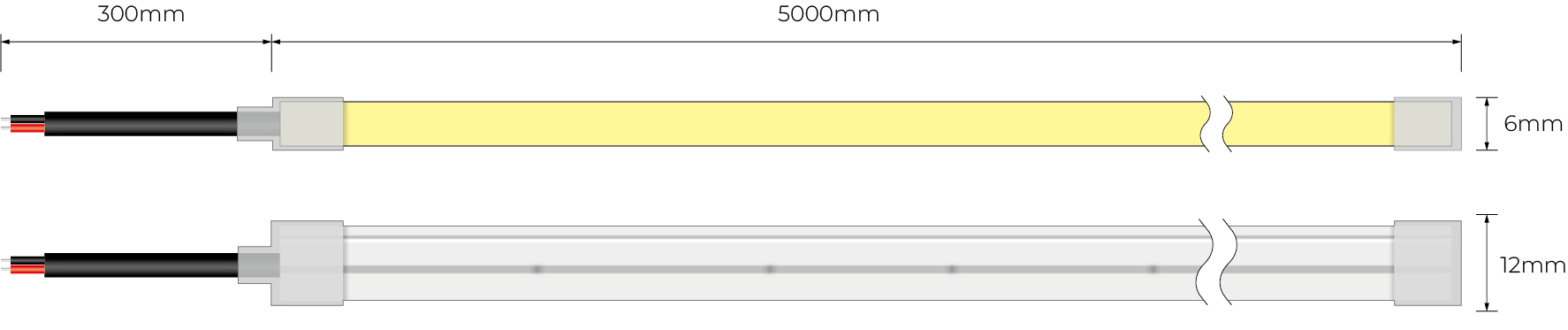

资源 2_副本

资源 3 资源 4

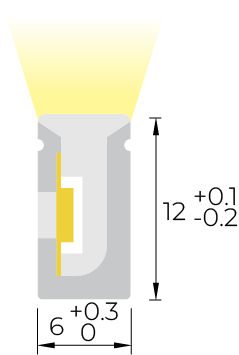

Min Bending Diameter Cross Section(mm)


Aluminium Profile
(1m/2m/3m)
资源 11_副本 资源 12
Aluminium Mounting clips
(2cm)
资源 13

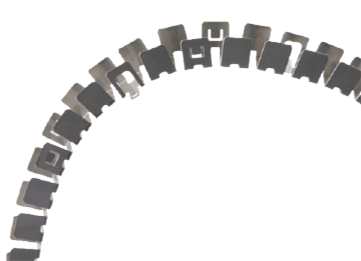

Flexible Profile
(1m)
资源 14_副本 资源 15
