INTEGRATE™ is a series of integrate flexible LED strips including single White, single Color, variable white, RGB, RGB pixel, RGBW and RGBVW. Various types would meet any your customized requirements. Integrate has dome surface as COB for soft and dot-less effect, same SMD technology as lighting source for better color consistency and custom CCT, good-looking appearance as neon light but more flexible and lighter in weight.
LED Type
SMD2835
CRI
>90
Color
2700K-6500K
Voltage
24 VDC
Wattage
10W/M
Max Lumen @ mixed
720LM/M

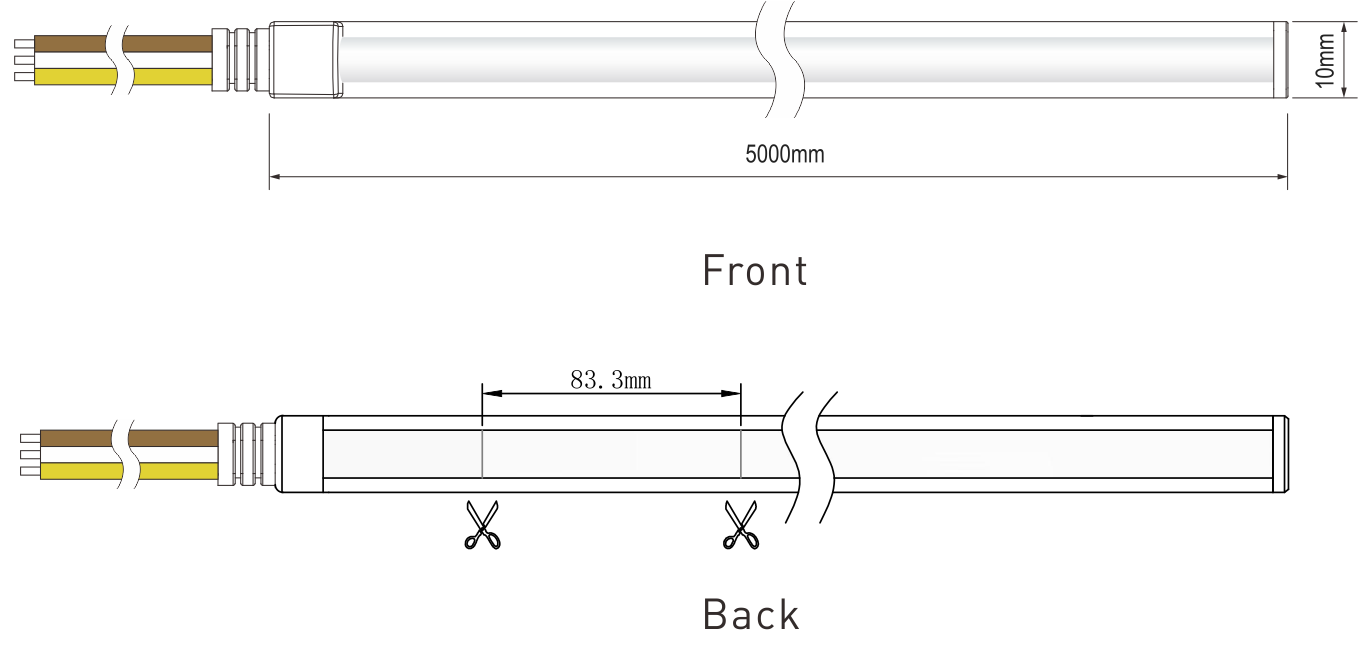

Dimension
10x4mm (W * H)
Cutting
83.3mm
Min Bend
10mm
IP Rating
IP65
Beam Angle
120 degree
Temperature Operating Minimum
-25℃
Temperature Operating Maximum
60 ℃
Maximum Recommended Length
5 Meters
Certification
UL-E464546, CE, RoHS, FCC, C-tick
Warranty
3 Years
INTEGRATE™ is a series of integrate flexible LED strips including single White, single Color, variable white, RGB, RGB pixel, RGBW and RGBVW. Various types would meet any your customized requirements. Integrate has dome surface as COB for soft and dot-less effect, same SMD technology as lighting source for better color consistency and custom CCT, good-looking appearance as neon light but more flexible and lighter in weight.
