| LED Type | SMD2835/3014/5028/5050 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow, Orange,Pink, RGB, RGBW |
| Voltage | 24 VDC |
| Wattage | 10W/M 12W/M |
| Max Lumen @ 4000K | 407LM/M |

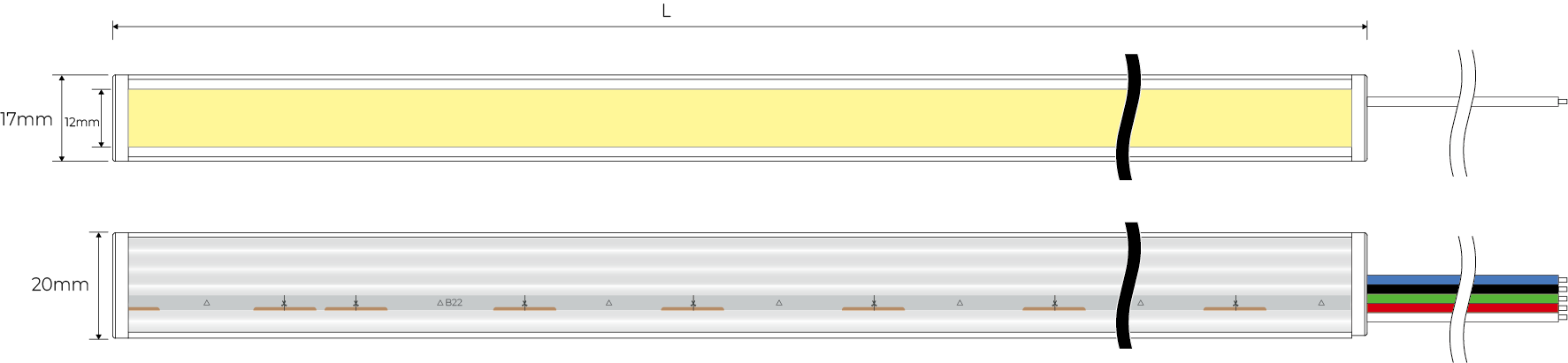

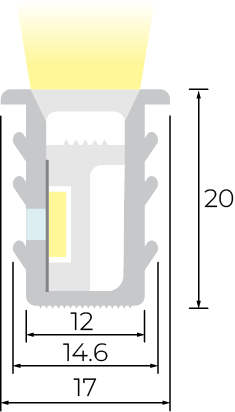

| Dimension | 12x20mm (W * H) |
| Cutting | 50mm @ single color
83.3mm @ RGB/RGBW |
| Bending Type | Horizontal Bending |

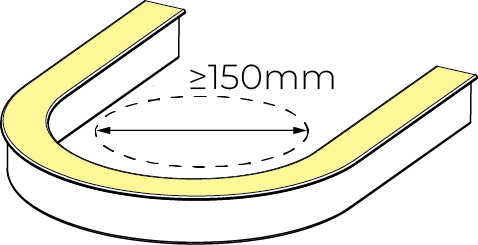

| Min Bend | 150mm |
| IP Rating | IP43 |
| Beam Angle | 112.8 degree |
| Temperature Operating Minimum | -25℃ |
| Temperature Operating Maximum | 45℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 17 meters @ 10W |
| Certification | UL-E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
