IP68 Constant Current Led Strip Light

  • OL-2835FHW8-12mm7.2W-6024C-W
CCT:
Voltage:
Max Length:
Availability:

Zodiac Series are our low power (<10W/M) product version and economic solution for your choice in retail area and for furniture lighting, you can find flexible strip designed for both indoor and outdoor application for example, IP68 which is silicone tube with silicone filling inside. You can also find single color like ordinary red, green and blue which could be for garden decoration.


LED TypeSMD2835
LED Quantity60LEDs Per Meter
CRI≥90
Color Temperature2700K / 3000K / 4000K / 6500K
Voltage24VDC
Wattage7.2W/M
Efficiency98LM/W
Max Lumen @ 4000K730LM/M
PCB Width12MM
Copper Quantity3Oz.
Cutting Length100MM
IP RatingIP68
Beam Angle120 Degree
Temperature Operating Minimum-35℃
Temperature Operating Maximum60℃
Maximum Recommended Length20 Meters
Lifetime50,000 Hours
CertificationUL-E464546, CE, RoHS, FCC, C-tick
Warranty5 Years
AdhesionTESA 4965 / 3M Back Tape

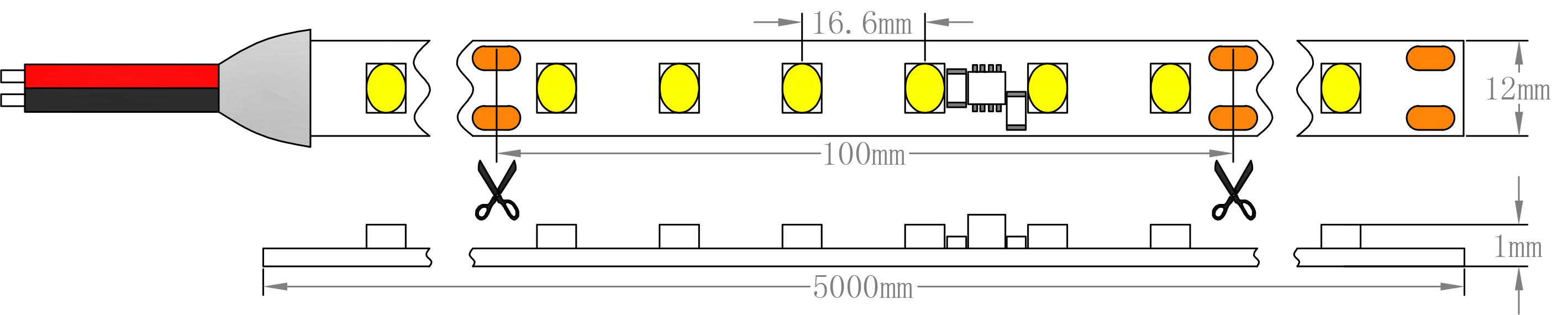

Dimension
