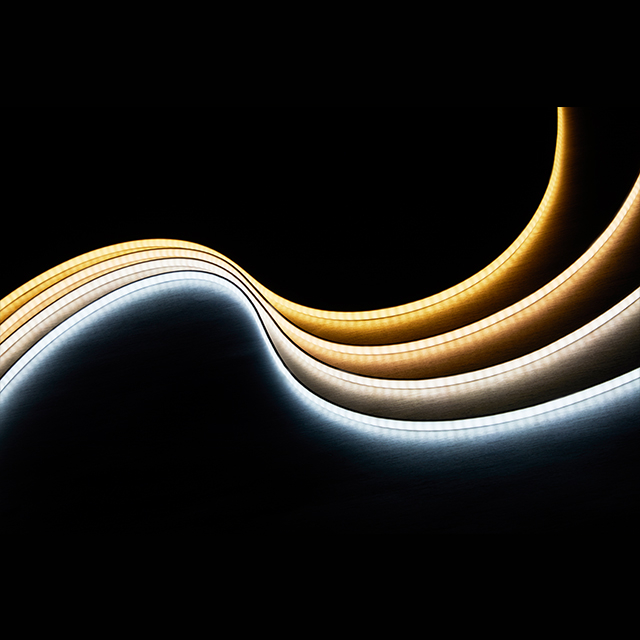

The INTEGRATE™ is a series of integrate flexible LED strips including single / tuneable white, RGB, RGB pixel, RGBW and RGBVW. Various types would meet any your customized requirements. Integrate has dome surface as COB for soft and dot-less effect, same SMD technology as lighting source for better color consistency and custom CCT, good-looking appearance as neon light but more flexible and lighter in weight. Please feel free to contact us for free sample.
LED Type
SMD2835
CRI
>90
Color
2700K / 3000K / 4000K / 6500K
Voltage
24VDC
Wattage
5W/M
Max Lumen @ 6500K
480LM/M
Dimension
8x4mm (W * H)
Cutting
50mm
Min Bend
10mm
IP Rating
IP65
Beam Angle
120 degree
Temperature Operating Minimum
-25℃
Temperature Operating Maximum
55 ℃
Maximum Recommended Length
5 Meters
Certification
UL -E464546, CE, RoHS, FCC, C-tick
Warranty
3 Years
The INTEGRATE™ is a series of integrate flexible LED strips including single / tuneable white, RGB, RGB pixel, RGBW and RGBVW. Various types would meet any your customized requirements. Integrate has dome surface as COB for soft and dot-less effect, same SMD technology as lighting source for better color consistency and custom CCT, good-looking appearance as neon light but more flexible and lighter in weight. Please feel free to contact us for free sample.
