IP68 Vertical Bending 16x17mm Neon

Watt:
3.3W/M
3.7W/M
5W/M
7.5W/M
10W/M
15W/M
Voltage:
24 V
CCT:
1800K
2100K
2400K
2700K
3000K
3500K
4000K
5000K
6500K
Red
Green
Blue
Yellow
Orange
Pink
6000K
2700K+6000K
RGB
W(3000K)
RGBW
W(4000K)
Availability:
Inquire

LED TypeSMD2835/5050/5060
CRI>90
ColorWhite, Red, Green, Blue, Yellow,Orange,Pink, RGB, RGBW
Voltage24   VDC
Wattage3.3W/M 3.7W/M 5W/M 7.5W/M 10W/M 15W/M
Max Lumen @ 2700K+6000K  15W863LM/M

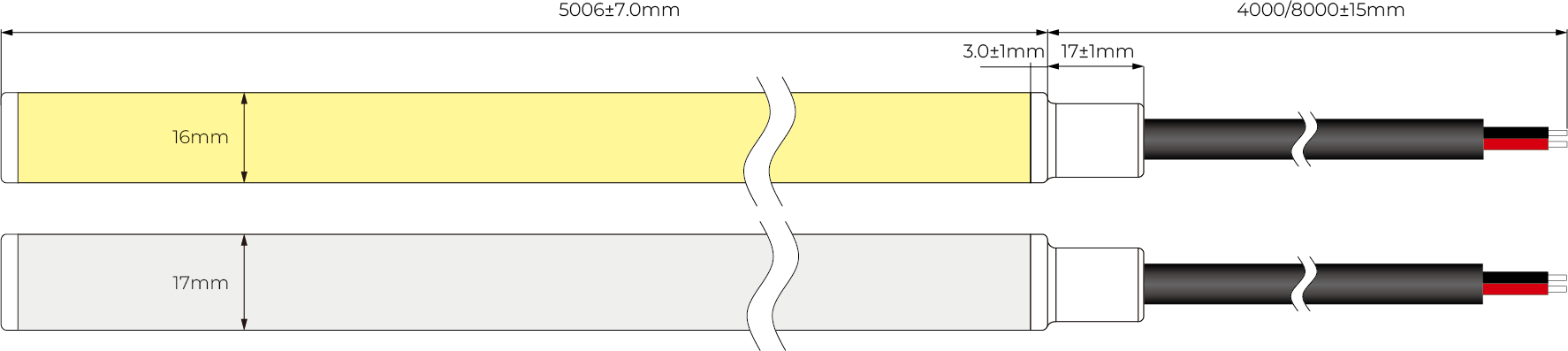

Dimension16x17mm   (W*H)
Cutting50mm   @ single color

62.5mm @ CCT Tunable/RGB/RGBW

125mm@RGBW Pixel

Bending TypeVertical   Bending
Min Bend200mm
IP RatingIP68
Beam Angle112.8 degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum55℃
Maximum Recommended LengthCV type 8meters; CC type 14 meters @ 10W
CertificationUL-E464546, CE, RoHS, FCC, C-tick
Warranty5 Years


资源 2

资源 3

资源 4

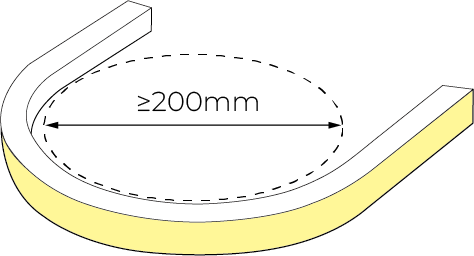

Min Bending Diameter Cross Section(mm)

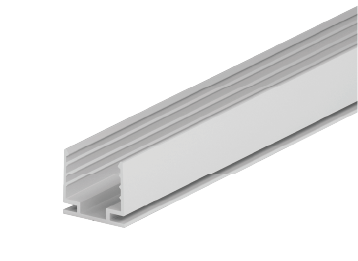

Aluminium Profile
(1m/2m/3m)

资源 8

资源 9
Aluminium Mounting clips
（2cm）

资源 10

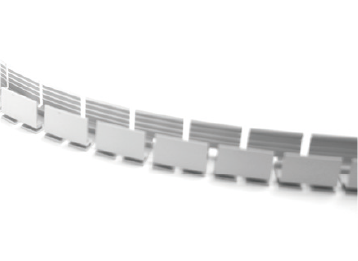

Flexible Profile
(1m)

资源 11

 资源 12

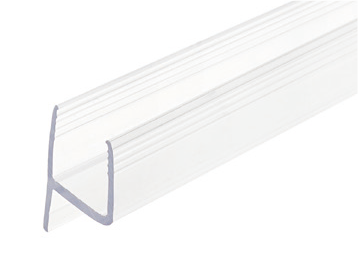

PC Profile
(1m/2m/3m)		 资源 13

资源 14

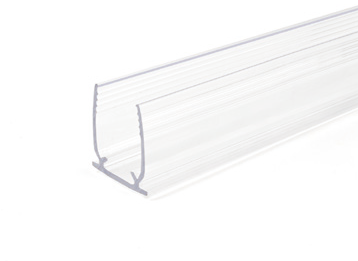

PC Profile
(1m/2m/3m)		 资源 15 资源 16

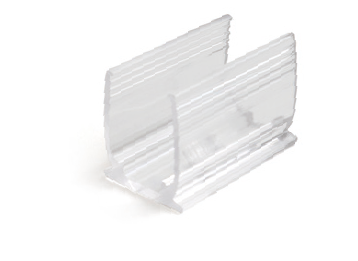

PC Mounting clips
（2cm）		 资源 17


download IP68 Vertical Bending 16x17mm Neon.pdf
