| LED Type | SMD2835/3014/4040/5060 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow, Orange, Pink, RGB, RGBW |
| Voltage | 24 VDC |
| Wattage | 5W/M 10W/M |
| Max Lumen @ 3500K 10W | 480LM/M |
| Dimension | 20x20mm (W*H) |
| Cutting | 50mm @ single color
62.5mm @ RGB/RGBW |
| Bending Type | Horizontal Bending |

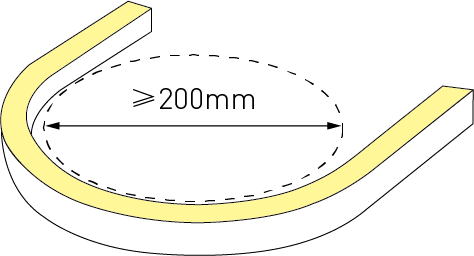

| Min Bend | 200mm |
| IP Rating | IP67 |
| Beam Angle | 114.1 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55 ℃ |

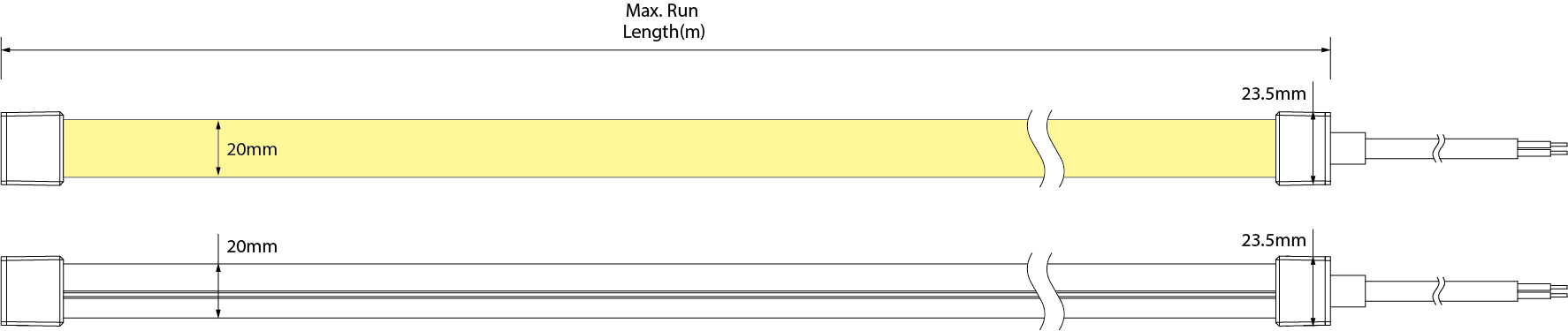

| Maximum Recommended Length | CV type 5 meters; CC type 17 meters @ 10W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years
|
| LED Type | SMD2835/3014/4040/5060 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow, Orange, Pink, RGB, RGBW |
| Voltage | 24 VDC |
| Wattage | 5W/M 10W/M |
| Max Lumen @ 3500K 10W | 480LM/M |
| Dimension | 20x20mm (W*H) |
| Cutting | 50mm @ single color
62.5mm @ RGB/RGBW |
| Bending Type | Horizontal Bending |
| Min Bend | 200mm |
| IP Rating | IP67 |
| Beam Angle | 114.1 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55 ℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 17 meters @ 10W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years
|

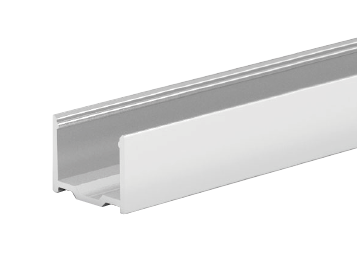

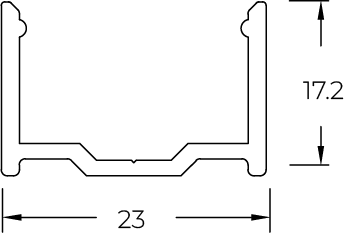

Aluminium Profile
(1m/2m/3m) | ![资源 11]() | ![资源 12]() |
|
Aluminium Mounting Clips
(2cm) |
![资源 13]()
|
|
Aluminium Profile
(1m/2m/3m) | ![资源 11]() | ![资源 12]() |
|
Aluminium Mounting Clips
(2cm) |
![资源 13]()
|
|
