| LED Type | SMD2835 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow, Orange |
| Voltage | 24 VDC |
| Wattage | 8.6W |
| Max Lumen @ Green 8.6W | 599 LM/M |

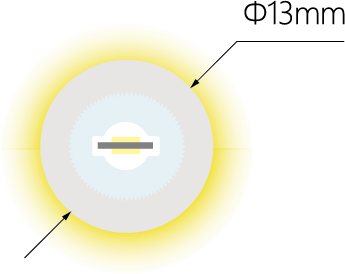

| Dimension | 13mm (Diameter) |
| Cutting | 25mm |
| Bending Type | Horizontal Bending Vertifical Bending |

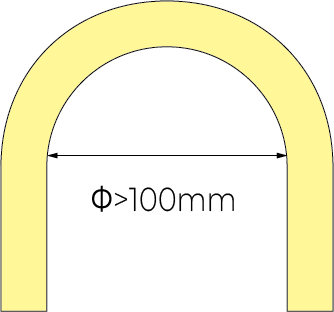

| Min Bend | 100mm
|
| IP Rating | IP67 |
| Beam Angle | 200.4 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55℃ |

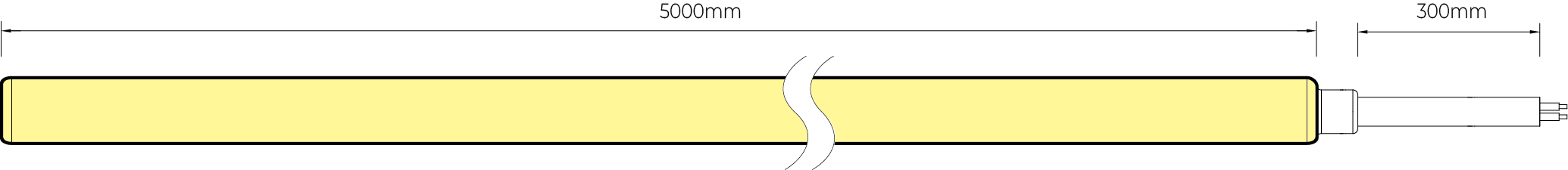

| Maximum Recommended Length | CV type 5 meters |
| Certification | UL-E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
| LED Type | SMD2835 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow, Orange |
| Voltage | 24 VDC |
| Wattage | 8.6W |
| Max Lumen @ Green 8.6W | 599 LM/M |
| Dimension | 13mm (Diameter) |
| Cutting | 25mm |
| Bending Type | Horizontal Bending Vertifical Bending |
| Min Bend | 100mm
|
| IP Rating | IP67 |
| Beam Angle | 200.4 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55℃ |
| Maximum Recommended Length | CV type 5 meters |
| Certification | UL-E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |

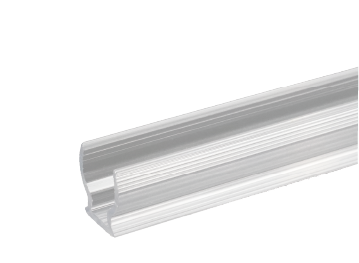

PC Profile
(1m/2m/3m) | ![资源 7]() |
![资源 8]()
|
|
PC Mounting Clips
(2cm) | ![资源 9]()
|
|
PC Profile
(1m/2m/3m) | ![资源 7]() |
![资源 8]()
|
|
PC Mounting Clips
(2cm) | ![资源 9]()
|
|
