| LED Type | SMD2835/2822/5050 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow, Orange, Pink, RGB, RGBW |
| Voltage | 24 VDC |
| Wattage | 5W/M 10W/M 12W/M |
| Max Lumen @ 5000K 10W | 515LM/M |

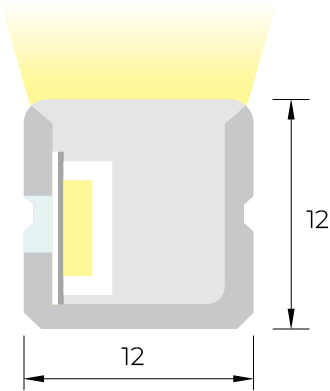

| Dimension | 12x12mm (W*H) |

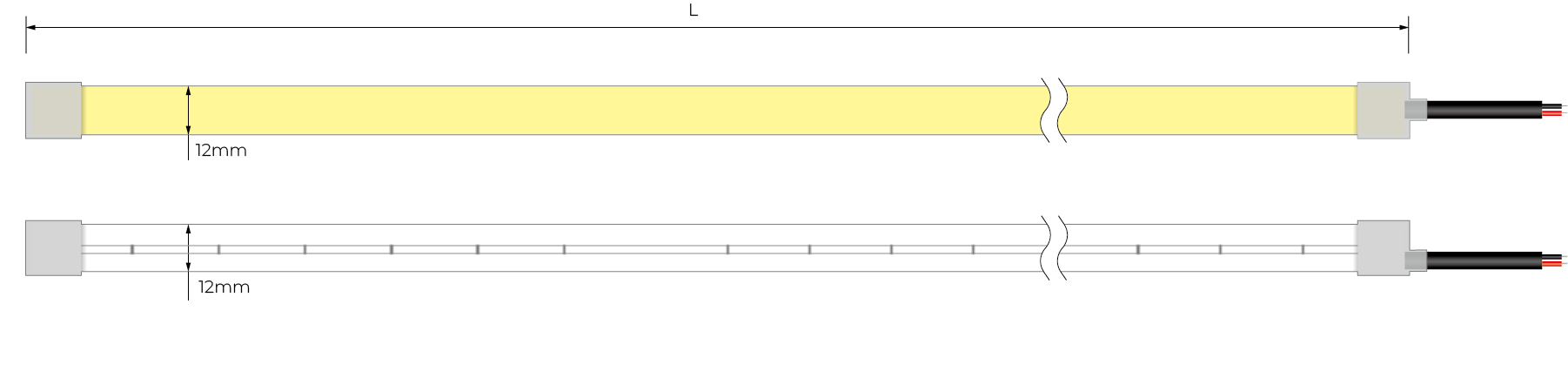

| Cutting | 50mm @ single color
62.5mm @ RGB |
| Bending Type | Horizontal Bending |

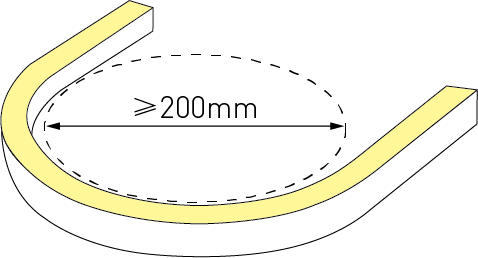

| Min Bend | 200mm |
| IP Rating | IP67 |
| Beam Angle | 113.7 degree |
| Temperature, Operating, Minimum | -25℃ |
Temperature, Operating, Maximum
| 55 ℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 13 meters @ 10W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
| LED Type | SMD2835/2822/5050 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow, Orange, Pink, RGB, RGBW |
| Voltage | 24 VDC |
| Wattage | 5W/M 10W/M 12W/M |
| Max Lumen @ 5000K 10W | 515LM/M |
| Dimension | 12x12mm (W*H) |
| Cutting | 50mm @ single color
62.5mm @ RGB |
| Bending Type | Horizontal Bending |
| Min Bend | 200mm |
| IP Rating | IP67 |
| Beam Angle | 113.7 degree |
| Temperature, Operating, Minimum | -25℃ |
Temperature, Operating, Maximum
| 55 ℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 13 meters @ 10W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
