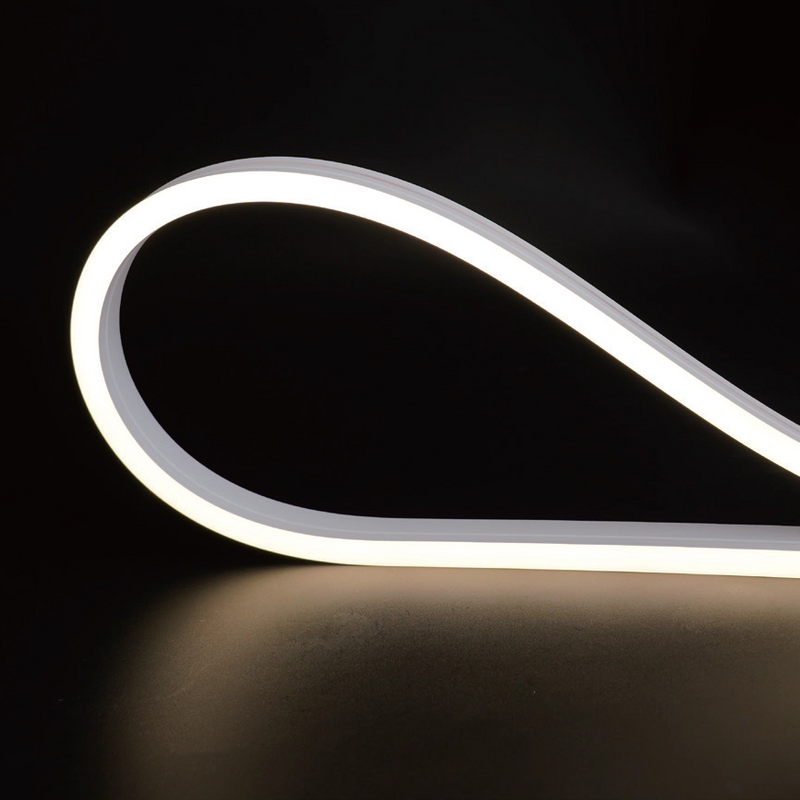

AC230V Horizontal Bending 12x20mm Neon

The AC230V Horizontal Bending 12x20mm Neon Flex is a versatile and high-performance lighting solution designed for both indoor and outdoor applications. With its unique horizontal bending capability, this neon strip allows creative and seamless curves, making it ideal for architectural outlines, signage, decorative designs, and landscape lighting.
Wattage:
5W/M
10W/M
12W/M
Voltage:
24V
Color Temperature:
1800K
2400K
2700K
3000K
3500K
4000K
5000K
6500K
Availability:
Inquire

LED Type2835
CRI>90
ColorWhite
Voltage24 VDC
Wattage5W/M;10W/M;12W/M
Max Lumen @ 5000K 12W529 LM/M
Dimension12x20mm   (W*H)
Cutting

100mm

Bending Type3D

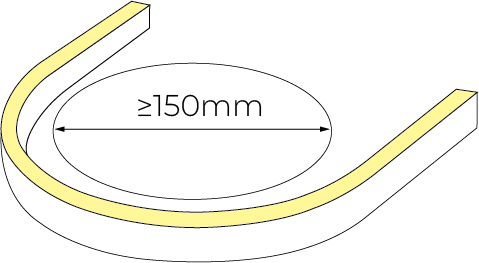

Min Bend150mm
IP RatingIP67
Beam Angle113.6 degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum45℃
Maximum Recommended Length

CV   type 30 meters;

CertificationUL - E464546, CE, C-tick
Warranty5 Years


资源 3

资源 2 资源 1

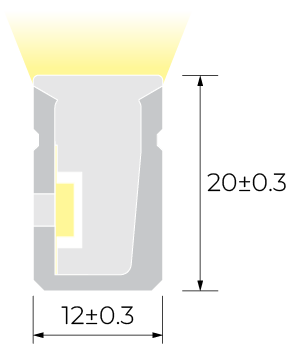

Min Bending Diameter Cross Section(mm)


Aluminium Profile

(1m/2m/3m)

 资源 9 资源 10

Aluminium Mounting Clips

(2cm)

 资源 13
Flexible Profile
(1m)		 资源 11 资源 12
PC Profile
(1m/2m/3m)		 资源 13
 资源 14


download AC230V Horizontal Bending 12x20mm Neon.pdf
