| LED Type | 2835
|
| CRI | >90 |
| Color | White, Red, Green,Blue,Yellow,Orange, etc. |
| Voltage | 24 VDC |
| Wattage | 10W/M |
| Max Lumen @ 5000K 10W | 506 LM/M |

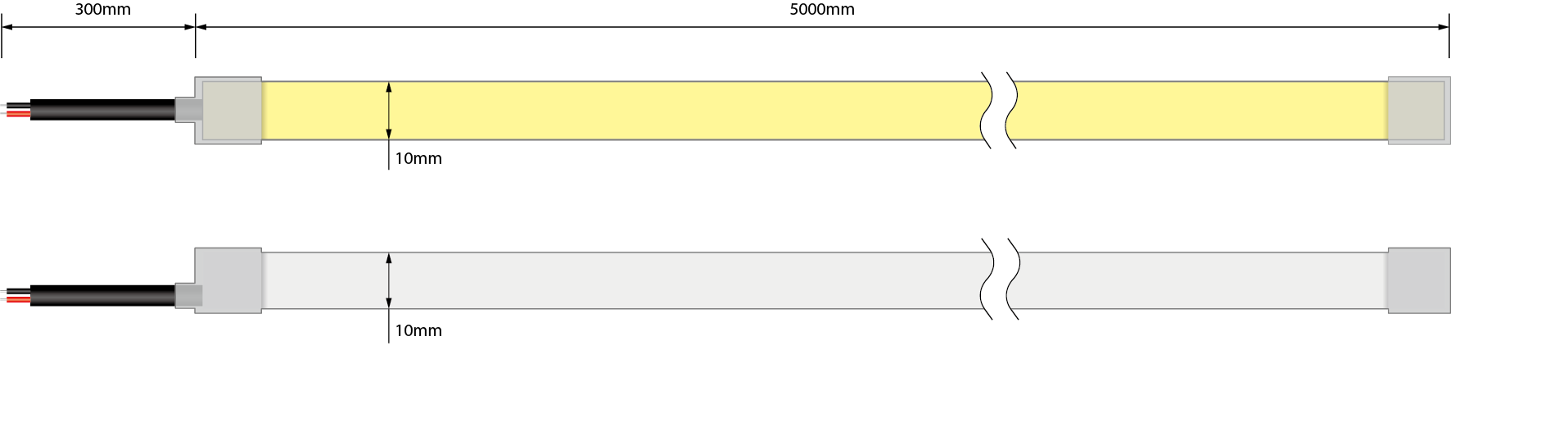

| Dimension | 10x10mm (W*H) |
| Cutting | 35.7mm |

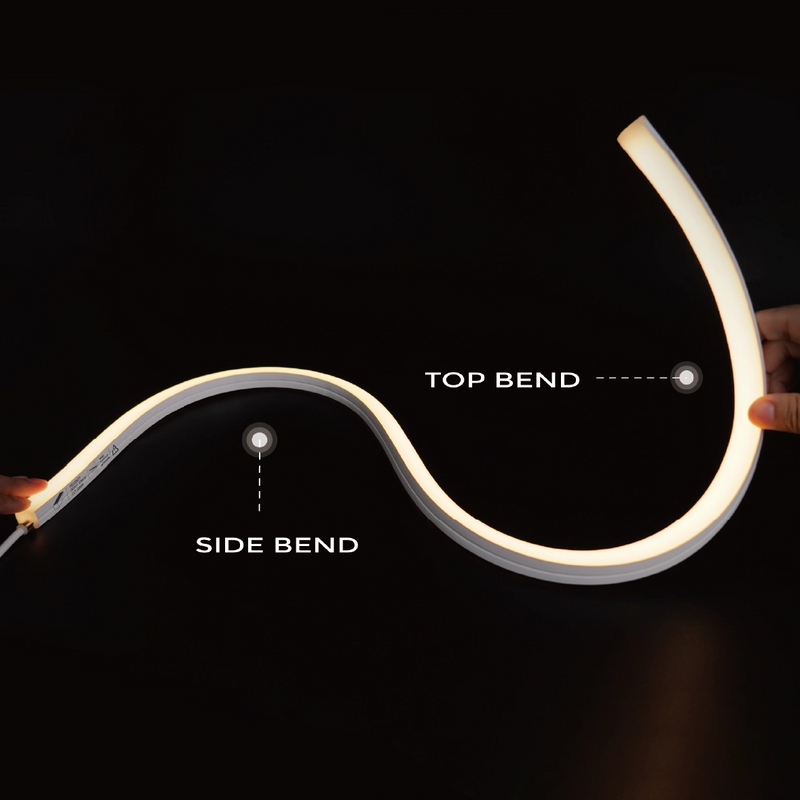

| Bending Type | 3D
|
| Min Bend | 300mm
|
| IP Rating | IP67 |
| Beam Angle | 111.3 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55℃ |
| Maximum Recommended Length | CV type 5 meters; |
| Certification | UL - E464546, CE, C-tick |
| Warranty | 5 Years |
| LED Type | 2835
|
| CRI | >90 |
| Color | White, Red, Green,Blue,Yellow,Orange, etc. |
| Voltage | 24 VDC |
| Wattage | 10W/M |
| Max Lumen @ 5000K 10W | 506 LM/M |
| Dimension | 10x10mm (W*H) |
| Cutting | 35.7mm |
| Bending Type | 3D
|
| Min Bend | 300mm
|
| IP Rating | IP67 |
| Beam Angle | 111.3 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55℃ |
| Maximum Recommended Length | CV type 5 meters; |
| Certification | UL - E464546, CE, C-tick |
| Warranty | 5 Years |
![资源 1]()
![资源 2]() | ![资源 3]() |
| Min Bending Diameter | Cross Section(mm) |
![资源 1]()
![资源 2]() | ![资源 3]() |
| Min Bending Diameter | Cross Section(mm) |
