Horizontal Bending 04x08mm Neon （Integrated）

  • OL-2835NPH-04x08mm6W-12024-W/R/G/B/Y/O/P

  • OL-2835NPH-04x08mm6W-12024-

CCT:
2700K
3000K
4000K
5500K
Red
Green
Blue
Yellow
Orange
Pink
Watt:
6W/M
Voltage:
24V
Availability:
Inquire

Not just lighting source but a complete lighting fixture. There are flexible choices with various shapes and bending direction including horizontal bending and parallel one. Besides the COB series, you will also not see dots in the neon light. Hope you will enjoy the smooth and comfortable experience.


LED   TypeSMD2835
CRI>90
Color2700K, 3000K, 4000K, 5500K, Red, Green, Blue, Yellow, Orange, Pink，etc.
Voltage24   VDC
Wattage6W/M
Max Lumen @ 3000K  6W184 LM/M
Dimension04x08mm   (W*H)
Cutting50mm
Bending TypeHorizontal Bending
Min Bend30mm
IP RatingIP65
Beam Angle117.2 degree
Temperature, Operating, Minimum-25 ℃
Temperature, Operating, Maximum55 ℃
Maximum Recommended LengthCV type 5 meters
CertificationUL - E464546, CE, RoHS, FCC, C-tick
Warranty5 Years


资源 2

资源 3 资源 4

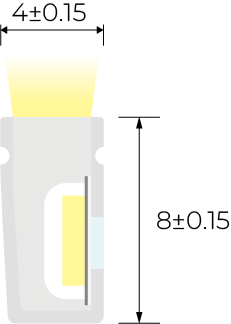

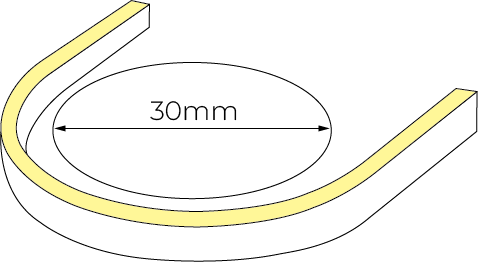

Min Bending Diameter Cross Section(mm)

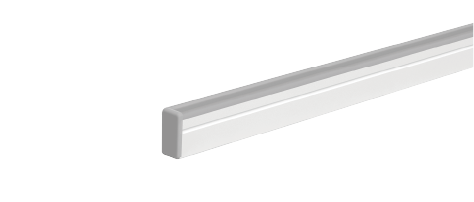

Aluminium Profile
(1m/2m/3m)		 资源 9 资源 10

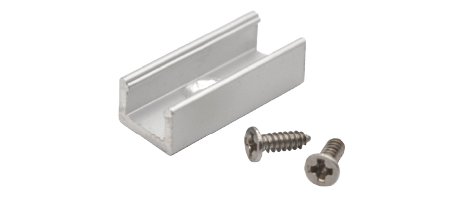

Aluminium Mounting clips
（2cm）		 资源 11


download Horizontal Bending 04x08mm Neon(Integrated).pdf
