| LED Type | SMD2835 |
| CRI | >90 |
| Color | 2700K / 3000K / 3500K/ 4000K / 5000K/ 6000K |
| Voltage | 24 VDC |
| Wattage | 10W/M |
| Max Lumen @ 6500K 15W | 610LM/M |

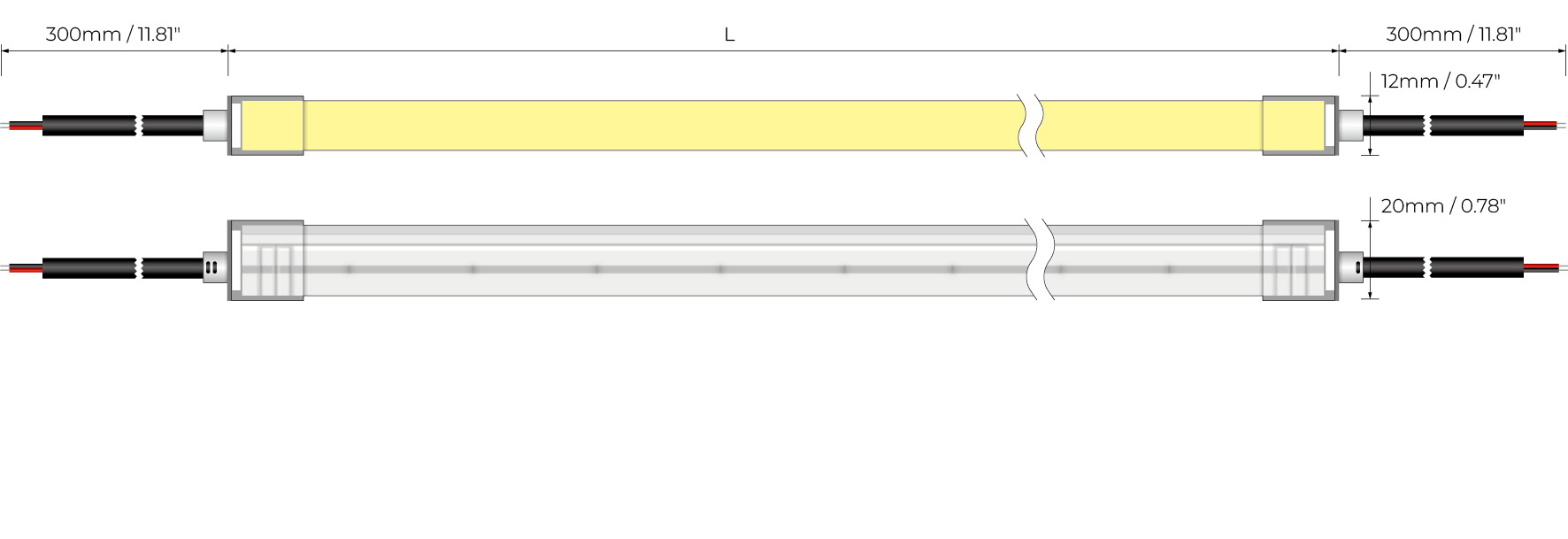

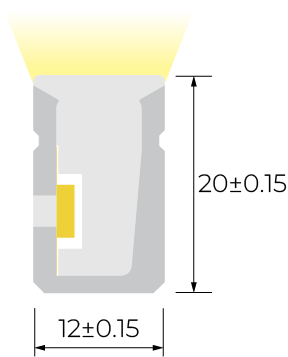

| Dimension | 12x20mm (W*H) |
| Cutting | 50mm |
| Bending Type | Horizontal Bending |

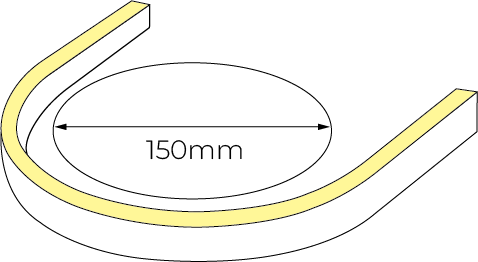

| Min Bend | 150mm |
| IP Rating | IP67 |
| Beam Angle | 113.1 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55 ℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 12 meters @ 10W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
| LED Type | SMD2835 |
| CRI | >90 |
| Color | 2700K / 3000K / 3500K/ 4000K / 5000K/ 6000K |
| Voltage | 24 VDC |
| Wattage | 10W/M |
| Max Lumen @ 6500K 15W | 610LM/M |
| Dimension | 12x20mm (W*H) |
| Cutting | 50mm |
| Bending Type | Horizontal Bending |
| Min Bend | 150mm |
| IP Rating | IP67 |
| Beam Angle | 113.1 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55 ℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 12 meters @ 10W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |

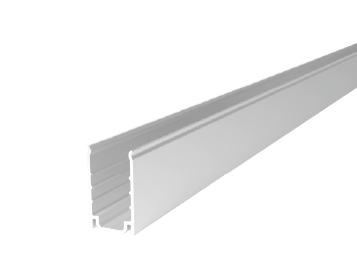

Aluminium Profile
(1m/2m/3m) | ![资源 16]() | ![资源 17]()
|
|
Aluminium Mounting Clips
(2cm) |
![资源 18]()
|
|
Flexible Profile
(1m) | ![资源 19]() | ![资源 20]()
|
|
PC Profile
(1m/2m/3m) | ![资源 21]() | ![资源 22]() |
|
Aluminium Profile
(1m/2m/3m) | ![资源 16]() | ![资源 17]()
|
|
Aluminium Mounting Clips
(2cm) |
![资源 18]()
|
|
Flexible Profile
(1m) | ![资源 19]() | ![资源 20]()
|
|
PC Profile
(1m/2m/3m) | ![资源 21]() | ![资源 22]() |
|
