SMD5730 70LEDs 24W High Efficiency 5 Meters Led Strip Light

  • OL-5730FH-12mm24W-7024-W
CCT:
Voltage:
IP Rating:
Availability:

Apollo Series are your ideal solution for commercial and entertainment lighting and any projects which requires high end features. You can find incredible CRI, most powerful wattage as well as various efficiency you are looking for in the Apollo series. The higher the CRI is the more accurate and vivid objects will be presented. High CRI (>95) is mostly applied in entertainment lighting and any places where is demanding for the light.



LED TypeSMD5730
LED Quantity70LEDs Per Meter
CRI≥90
Color Temperature2700K / 3000K / 4000K / 6500K
Voltage24VDC
Wattage24W Per Meter
Efficiency115LM/W
Max Lumen @ 4000K2830LM/M
PCB Width12MM
Copper Quantity4Oz.
Cutting Length100MM
IP RatingIP43 / IP65 / IP66 / IP67 / IP68 / IPnano
Beam Angle120 Degree
Temperature Operating Minimum-35℃
Temperature Operating Maximum60℃
Maximum Recommended Length5 Meters
Lifetime50,000 Hours
CertificationUL-E464546, CE, RoHS, FCC, C-tick
Warranty5 Years
AdhesionTESA 4965 / 3M Back Tape

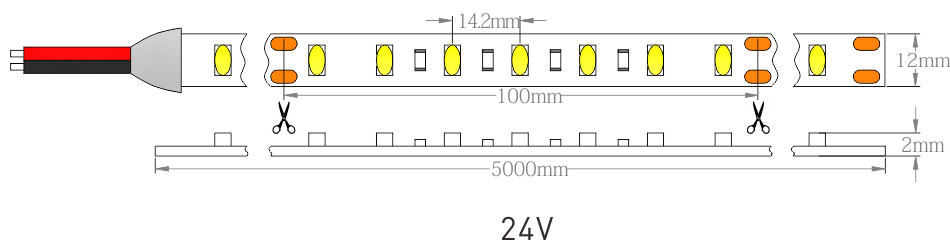

Dimension
