| LED Type | SMD2835/4040 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow, Orange, Pink, RGB etc. |
| Voltage | 24 VDC |
| Wattage | 10W/M 12.5W/M |
| Max Lumen @ 6500K 10W | 312 LM/M |

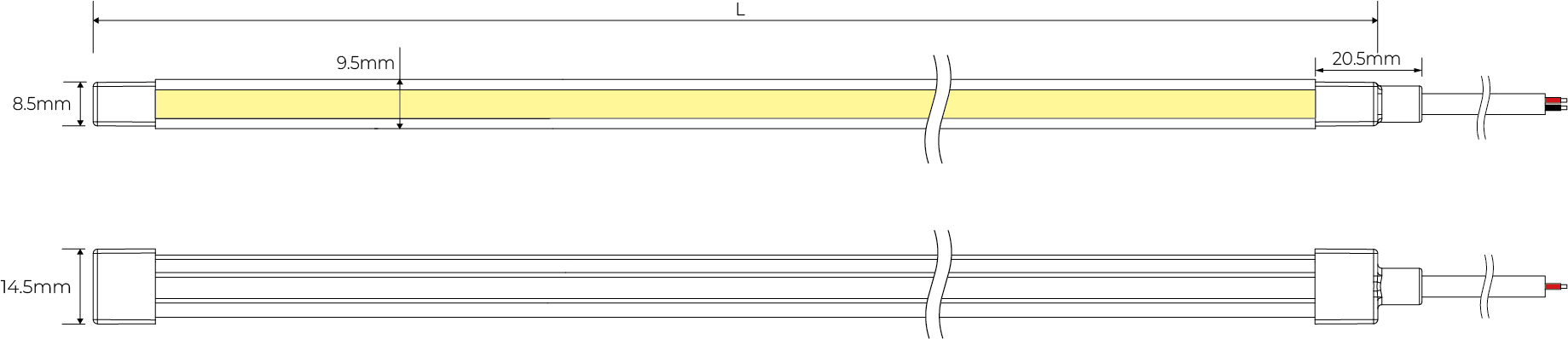

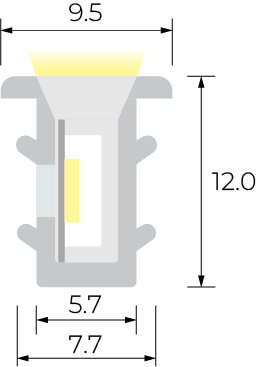

| Dimension | 06x12mm (W*H) |
| Cutting | 8.33mm@ Free Cut 50mm@ single color/RGB 62.5mm @CCT Tunable 100mm@ RGB Pixel |
| Bending Type | Horizontal Bending |

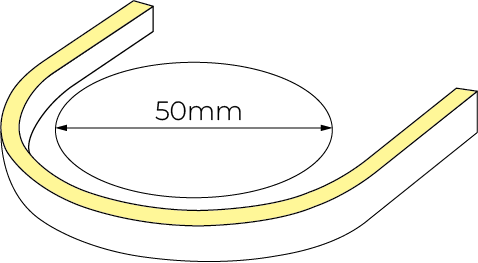

| Min Bend | 50mm |
| IP Rating | IP43 |
| Beam Angle | 112.6 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 45℃ |
| Maximum Recommended Length | CV type 5 meters CC type 5 meters |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
| LED Type | SMD2835/4040 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow, Orange, Pink, RGB etc. |
| Voltage | 24 VDC |
| Wattage | 10W/M 12.5W/M |
| Max Lumen @ 6500K 10W | 312 LM/M |
| Dimension | 06x12mm (W*H) |
| Cutting | 8.33mm@ Free Cut 50mm@ single color/RGB 62.5mm @CCT Tunable 100mm@ RGB Pixel |
| Bending Type | Horizontal Bending |
| Min Bend | 50mm |
| IP Rating | IP43 |
| Beam Angle | 112.6 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 45℃ |
| Maximum Recommended Length | CV type 5 meters CC type 5 meters |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
