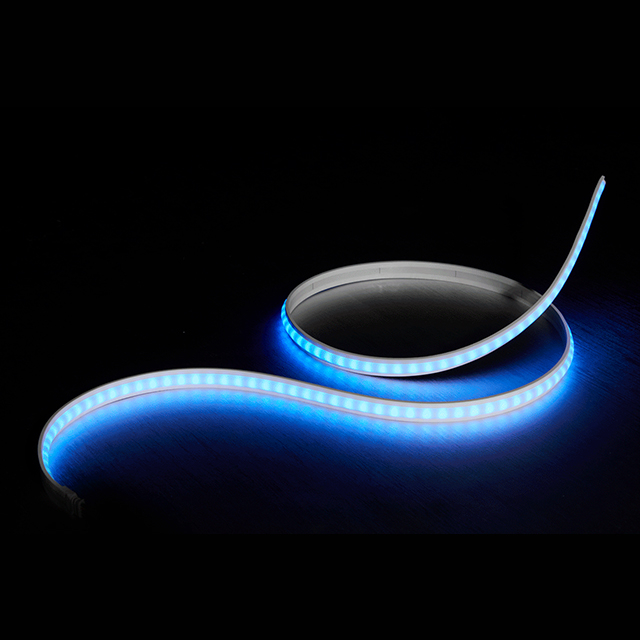

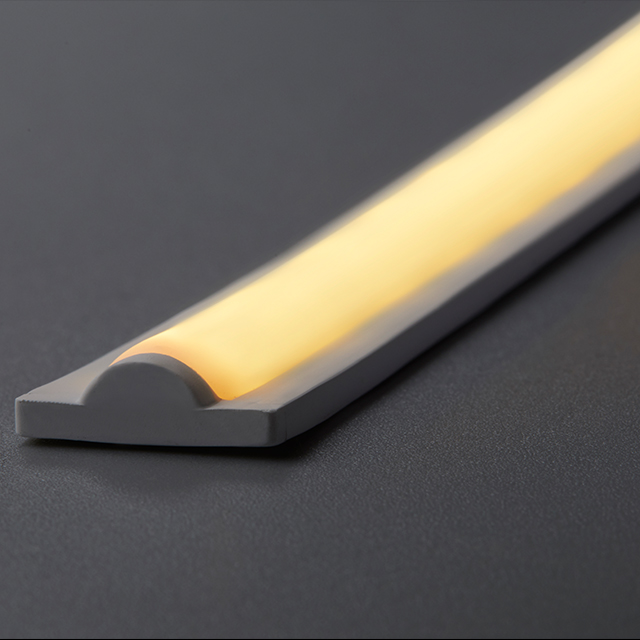

The INTEGRATE™ is a series of integrate flexible LED strips including variable white, RGB, RGB pixel, RGBW and RGBVW. The RGB integrate led strip light would meet any your project that need colorfull light. Integrate has dome surface as COB for soft and dot-less effect, same SMD technology as lighting source for better color consistency and custom CCT, good-looking appearance as neon light but more flexible and lighter in weight. Welcome to contact us for free sample.
LED Type
SMD2835
CRI
/
Color
RGB
Voltage
24 VDC
Wattage
10W/M
Max Lumen @ mixed
245LM/M
Dimension
12x4mm (W * H)
Cutting
50mm
Min Bend
10mm
IP Rating
IP65
Beam Angle
120 degree
Temperature Operating Minimum
-25℃
Temperature Operating Maximum
60 ℃
Maximum Recommended Length
5 Meters
Certification
UL - E464546, CE, RoHS, FCC, C-tick
Warranty
3 Years
The INTEGRATE™ is a series of integrate flexible LED strips including variable white, RGB, RGB pixel, RGBW and RGBVW. The RGB integrate led strip light would meet any your project that need colorfull light. Integrate has dome surface as COB for soft and dot-less effect, same SMD technology as lighting source for better color consistency and custom CCT, good-looking appearance as neon light but more flexible and lighter in weight. Welcome to contact us for free sample.
