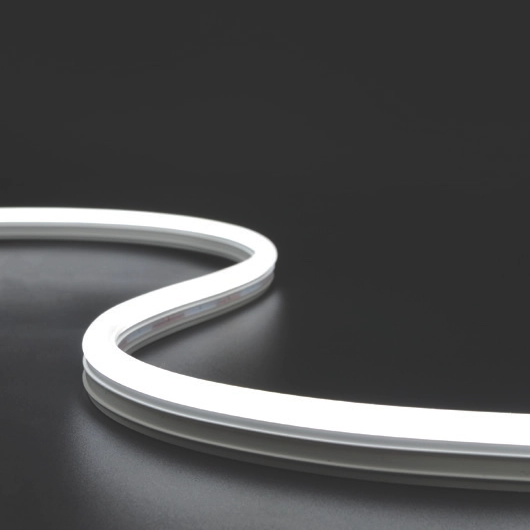

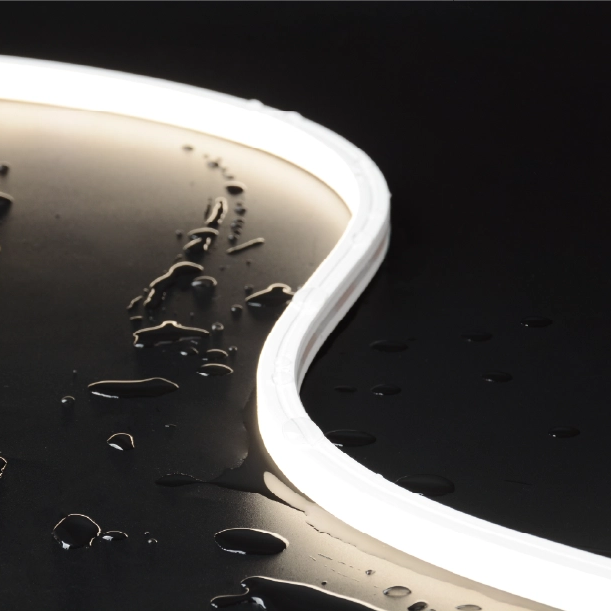

Vertical Bending 10x10mm Neon

  • OL-2835NPV-10×10mm10W-12024(C)-W/R/G/B/Y/O/P

Watt:
3.3W/M
4.8W/M
5W/M
10W/M
12.5W/M
Voltage:
24V
CCT:
2400K
2700K
3000K
3500K
4000K
5000K
6500K
Red
Green
Blue
Yellow
Orange
Pink
6000K
2700K+6000K
RGB
RGBW
Availability:
Inquire

LED TypeSMD2835/3014/4040/2822
CRI>90
ColorWhite, Red, Green,Blue,Yellow,Orange, etc.
Voltage24 VDC
Wattage3.3W/M 4.8W/M 5W/M 10W/M
Max Lumen @ 5000K  10W870LM/M
Dimension10x10mm   (W*H)
Cutting

50mm@Single Color/CCT Tunable/RGB/RGBW

100mm@RGB Pixel

8.33mm@Free Cut

Bending TypeVertical Bending
Min Bend150mm
IP RatingIP67
Beam Angle111.4 degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum55℃
Maximum Recommended LengthCV   type 5 meters;CC type 13meters
CertificationUL - E464546, CE, RoHS, FCC, C-tick
Warranty5 Years


资源 2

资源 3

资源 4

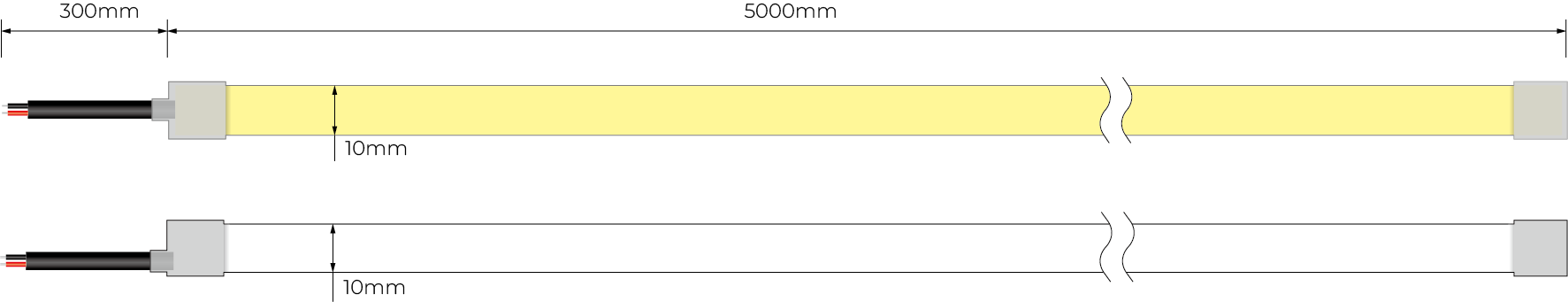

Min Bending Diameter Cross Section(mm)

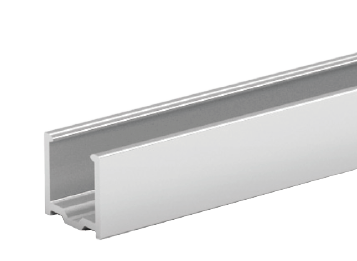

Aluminium Profile
(1m/2m/3m)		 资源 17 资源 18

Aluminium Mounting clips
（2cm）		 资源 19 资源 21
Flexible Profile
(1m)		 资源 20
PC Profile
(1m/2m/3m)		 资源 22
 资源 23


download Vertical Bending 10x10mm Neon.pdf
