| LED Type | SMD2835/5050/5060 |
| CRI | >90 |
| Color | White, Red, Green, Blue,Yellow,Orange,Pink,RGB,RGBW |
| Voltage | 24 VDC |
| Wattage | 3.75W/M 5W/M 7.5W/M 10W/M 15W/M |
| Max Lumen @ Green 15W | 974LM/M |

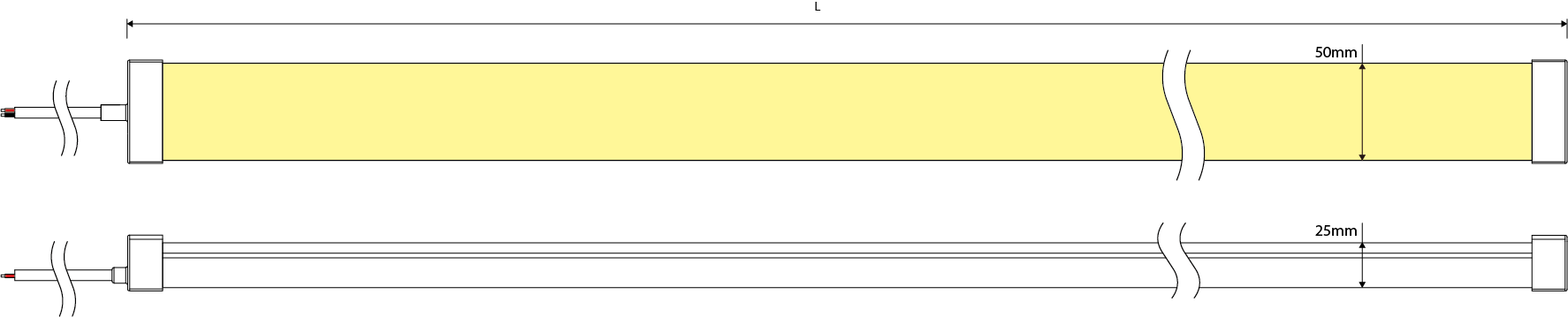

| Dimension | 50x25mm (W*H) |
| Cutting | 50mm @ single color
41.7mm @ CCT Tunable/RGB/RGBW |
| Bending Type | Vertical Bending |

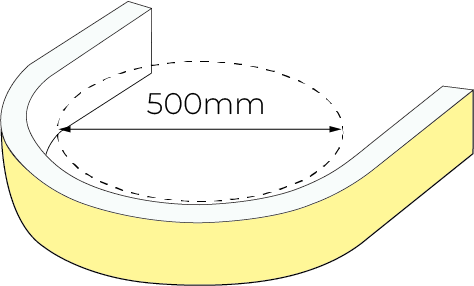

| Min Bend | 500mm |
| IP Rating | IP67 |
| Beam Angle | 113.1 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 12 meters @15W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
| LED Type | SMD2835/5050/5060 |
| CRI | >90 |
| Color | White, Red, Green, Blue,Yellow,Orange,Pink,RGB,RGBW |
| Voltage | 24 VDC |
| Wattage | 3.75W/M 5W/M 7.5W/M 10W/M 15W/M |
| Max Lumen @ Green 15W | 974LM/M |
| Dimension | 50x25mm (W*H) |
| Cutting | 50mm @ single color
41.7mm @ CCT Tunable/RGB/RGBW |
| Bending Type | Vertical Bending |
| Min Bend | 500mm |
| IP Rating | IP67 |
| Beam Angle | 113.1 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 12 meters @15W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
![资源 2]()
![资源 3]() | ![资源 4]() |

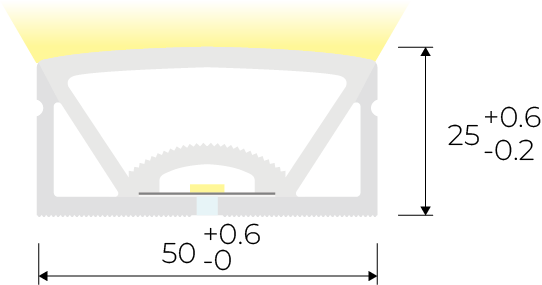

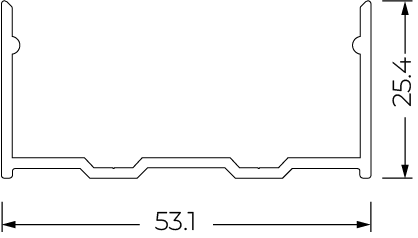

| Min Bending Diameter | Cross Section(mm) |
![资源 2]()
![资源 3]() | ![资源 4]() |
| Min Bending Diameter | Cross Section(mm) |
