Vertical Bending 12x12mm Inserted Neon

Watt:
3.3W/M
4.8W/M
5W/M
10W/M
12.5W/M
Voltage:
24V
CCT:
2700K
3000K
4000K
6500K
Red
Green
Blue
Orange
Yellow
Pink
6000K
2700K+6000K
RGB
RGBW
5000K
Availability:
Inquire

LED   TypeSMD2835/4040
CRI>90
ColorWhite,Red,Green,BlueYellow,Orange,Pink,RGB,RGBW
Voltage24VDC
Wattage3.3W/M 4.8W/M 5W/M 10W/M 12.5W/M
Max Lumen @ 4000K  10W680LM/M
Dimension12x12mm (W*H)
Cutting50mm @ single color

62.5mm @ CCT Tunable/RGB/RGBW

100mm@RGB Pixel

8.33m@Free Cut

Bending TypeVertifical Bending

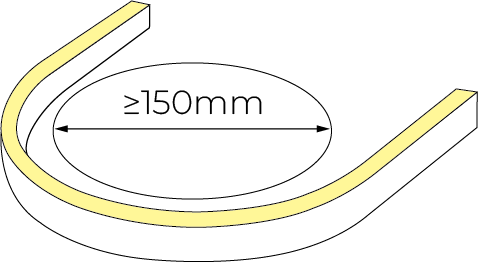

Min Bend150mm
IP RatingIP43
Beam Angle112.1 degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum45℃
Maximum Recommended LengthCV type 5 meters; CC type 13meters@10W
CertificationUL-E464546, CE, RoHS, FCC, C-tick
Warranty5 Years

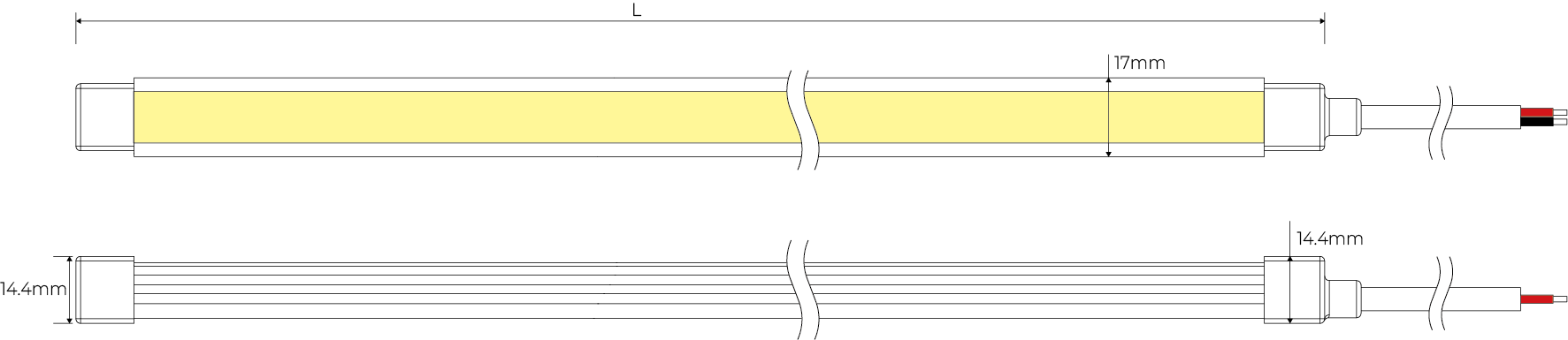

资源 1

资源 2

 资源 3

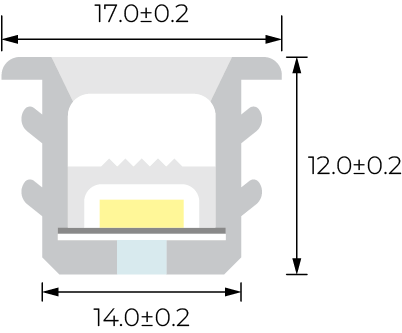

Min Bending Diameter Cross Section(mm)


download Vertical Bending 12x12mm Inserted Neon.pdf
