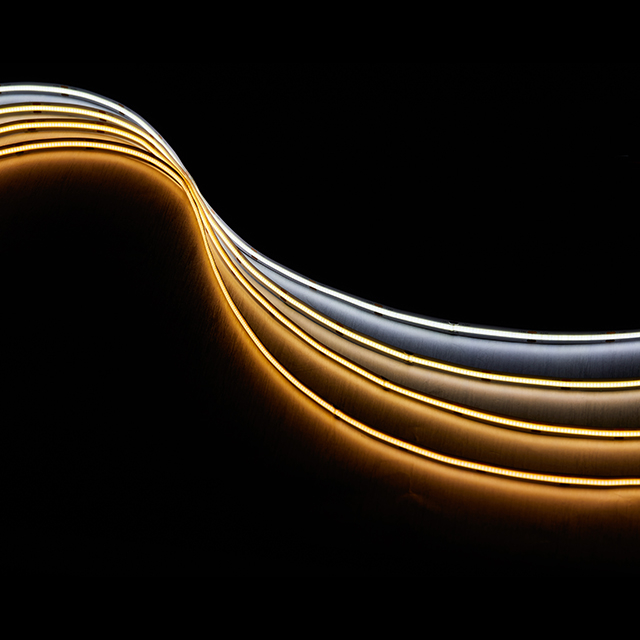

480leds Warm White Cob Led Light Strip Manufacturer

  • OL-COBFP-10mm15W-4801224-W
CCT:
Watt:
Voltage:
IP Rating:
Availability:

New technology for flexible LED strip, it is chip on board (COB). Compared with traditional  surface mount technology, chips being packaged inside a bracket, bare chip are directly mounted on board in COB tech. By that way, heat issue will be eased somehow. Another biggest advantage for COB products is that you will not see dots and dark space through fixtures.


LED   TypeCOB (chip on board)
LED Quantity480 Chips Per Meter
CRI≥90
Color Temperature2700K  3000K  4000K  6500K Red Green Blue
Voltage12VDC / 24VDC
Wattage5W/M  10W/M  15W/M
Efficiency100LM/W
Max Lumen480LM/M
PCB Width10mm
Copper Quantity2 Oz.
Cutting Length

25MM@ 12V

50MM @ 24V

IP RatingIP43 / IP65 / IP66 / IP67 / IP68
Beam Angle180 Degree
Temperature, Operating, Minimum-35℃
Temperature, Operating, Maximum60℃
Maximum Recommended Length5 Meters
Lifetime50,000 Hours
CertificationUL-E464546, CE, RoHS, FCC, C-tick
Warranty3 Years
AdhesionTESA 4965 / 3M Back Tape
