| LED Type | SMD2835/5050/5028/5060 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow,Orange,Pink, RGB, RGBW |
| Voltage | 24 VDC |
| Wattage | 10W/M 11W/M 15W/M |
| Max Lumen @ 4000K | 727LM/M |
| Dimension | 16x17mm (W * H) |
| Cutting | 50mm @ single color
83.3mm @ RGB/RGBW |
| Bending Type | Horizontal Bending |
| Min Bend | 150mm |
| IP Rating | IP67 |
| Beam Angle | 112.8 degree |
| Temperature Operating Minimum | -25℃ |
| Temperature Operating Maximum | 55℃ |
| Maximum Recommended Length | CV type 7 meters; CC type 15 meters @ 10W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
| LED Type | SMD2835/5050/5028/5060 |
| CRI | >90 |
| Color | White, Red, Green, Blue, Yellow,Orange,Pink, RGB, RGBW |
| Voltage | 24 VDC |
| Wattage | 10W/M 11W/M 15W/M |
| Max Lumen @ 4000K | 727LM/M |
| Dimension | 16x17mm (W * H) |
| Cutting | 50mm @ single color
83.3mm @ RGB/RGBW |
| Bending Type | Horizontal Bending |
| Min Bend | 150mm |
| IP Rating | IP67 |
| Beam Angle | 112.8 degree |
| Temperature Operating Minimum | -25℃ |
| Temperature Operating Maximum | 55℃ |
| Maximum Recommended Length | CV type 7 meters; CC type 15 meters @ 10W |
| Certification | UL - E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
![资源 2]() |
![资源 3]() | ![资源 4]() |

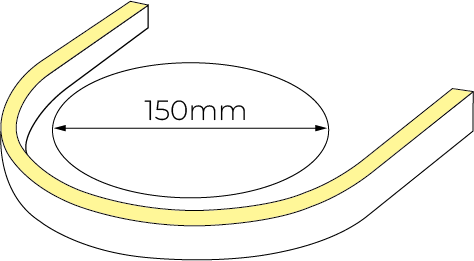

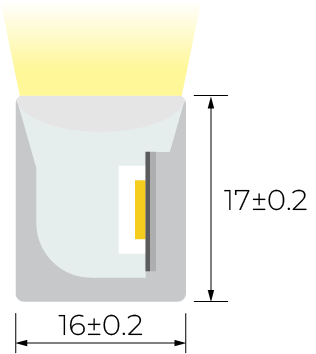

| Min Bending Diameter | Cross Section(mm) |
![资源 2]() |
![资源 3]() | ![资源 4]() |
| Min Bending Diameter | Cross Section(mm) |

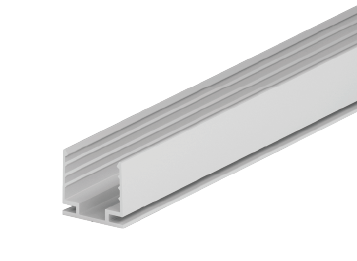

Aluminium Profile
(1m/2m/3m) | ![资源 13]() | ![资源 14]() |
|
Aluminium Mounting Clips
(2cm) |
![资源 15]()
|
|
Aluminium Profile
(1m/2m/3m) | ![资源 13]() | ![资源 14]() |
|
Aluminium Mounting Clips
(2cm) |
![资源 15]()
|
|
