OL-1210FHW7-10mm19.2W-24024-W
| CCT: | |
|---|---|
| Voltage: | |
| IP Rating: | |
The Luna Series represents our professional-grade middle power (10W-20W) LED flexible strip lighting solutions. Compared to standard alternatives, the Luna Series utilizes advanced manufacturing techniques to significantly enhance brightness and overall optical performance. By incorporating a high-density configuration—specifically 240 LEDs per meter for this exterior model—these strip lights deliver a substantially higher lumen output while ensuring a smooth, uniform, and continuous light distribution. This high-density design effectively minimizes visible hot spots, making it highly suitable for demanding architectural, commercial, and landscape lighting projects where consistent illumination and reliable IP67 weather resistance are required for long-term outdoor installations.
Parameter | Specification |
LED Type | SMD1210 |
LED Quantity | 240 LEDs Per Meter |
CRI | ≥90 |
Color Temperature | 2700K / 3000K / 4000K / 6500K |
Voltage | 24VDC |
Wattage | 19.2W/M |
Efficiency | 90LM/W |
Max Lumen @ 4000K | 1850LM/M |
PCB Width | 10MM |
Copper Quantity | 2 Oz. |
Cutting Length | 25MM |
IP Rating | IP67 |
Beam Angle | 120 Degree |
Temperature, Operating, Minimum | -35℃ |
Temperature, Operating, Maximum | 60℃ |
Maximum Recommended Length | 5 Meters |
Lifetime | 50,000 Hours |
Certification | UL-E464546, CE, RoHS, FCC, C-tick |
Warranty | 5 Years |
Adhesion | TESA 4965 / 3M Back Tape |
These comprehensive technical parameters demonstrate the capability of the 240 LEDs exterior LED strip light to meet stringent project requirements. The combination of a 2-ounce copper PCB, 90+ CRI, and a wide operating temperature range supports long-term operational stability, accurate color rendering, and simplified specification for commercial lighting buyers.
The high-density LED arrangement reduces the distance between individual light points, helping the strip create a smoother and more continuous lighting effect.
When installed inside a compatible aluminum profile with a diffuser, it is suitable for architectural lines, building contours, exterior displays and other applications where uniform illumination is important.
With a power consumption of 19.2W per meter, the strip provides sufficient output for architectural accent lighting, commercial exterior lighting and visible linear lighting applications.
The typical luminous efficiency is approximately 90 lm/W, while the maximum specified output at 4000K reaches up to 1850 lm/m.
CRI 90+ helps illuminated surfaces, building materials and decorative finishes appear closer to their natural colors.
This makes the strip suitable for hotels, restaurants, retail spaces, residential projects and other environments where lighting quality is important.
The IP67-rated structure helps protect the strip against dust, rain, moisture and temporary water exposure under appropriate installation conditions.
The final protection level also depends on the connectors, cut ends, cables, drivers and sealing method used in the complete system.

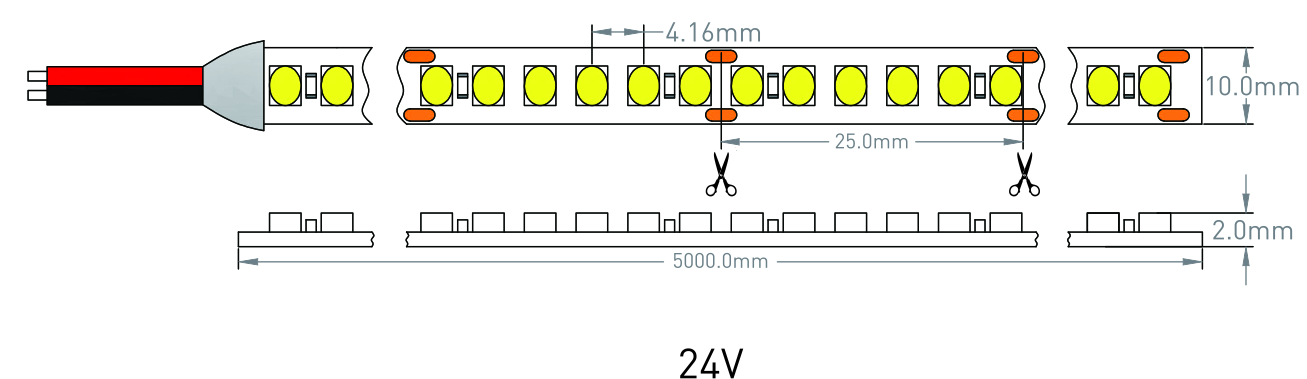

The strip can be cut at designated points every 25mm, allowing installers to adjust the lighting length more accurately for architectural details, signs, profiles and custom installation areas.
The 24V constant-voltage design is suitable for medium-length linear lighting installations and helps reduce current compared with equivalent lower-voltage strips.
For installations longer than the recommended continuous length, the lighting should be divided into separately powered sections.
The 240 LEDs/m Exterior LED Strip Light is available in four standard color temperature options.
Color Temperature | Light Appearance | Recommended Applications |
|---|---|---|
2700K | Soft, warm light | Villas, hotels, restaurants and leisure environments |
3000K | Warm white | Building façades, entrances and hospitality projects |
4000K | Neutral white | Commercial buildings, architectural details and general exterior lighting |
6500K | Cool daylight | Signs, functional lighting and modern commercial environments |
The appropriate color temperature should be selected according to the building materials, surrounding light sources, project atmosphere and visual objective.
For projects using multiple batches or installation areas, color temperature and color consistency requirements should be confirmed before production.
The high LED density helps create a consistent lighting line across façade details, exterior edges and architectural features. Different color temperatures can be selected to match stone, metal, glass, wood and other building materials.
The flexible strip can follow straight or gently curved architectural lines. Its 25mm cutting interval allows the installation length to be adjusted more precisely for roof edges, outlines, columns and structural details.
The strip can be integrated into suitable profiles around entrances, covered walkways, exterior corridors and transitional spaces. The selected brightness and installation angle should be planned to avoid glare.
It can be installed in protected positions around garden structures, planters, retaining features, steps and landscape details. The complete installation should include suitable waterproof connections and drainage planning.
The 240 LEDs/m configuration provides closely spaced illumination for signs, exterior display structures and branded architectural elements. The required brightness should be evaluated according to viewing distance and ambient light.
CRI 90+ and multiple color temperature options make the strip suitable for hotels, restaurants, shopping areas, resorts and other commercial environments where both atmosphere and color appearance are important.
In addition to outdoor use, the IP67 structure may also be considered for selected indoor locations exposed to humidity or occasional splashing. Electrical components must still be positioned and protected according to local installation requirements.
Yes. The strip can be cut at the designated 25mm cutting points. The exposed end must be properly resealed before outdoor use.
A 5-meter section has a calculated load of 96W. A compatible 24V constant-voltage driver with sufficient operating capacity should be selected.
The maximum recommended continuous length is 5 meters. Longer installations should be divided into separately powered sections or supplied from additional power points.
An aluminum profile is recommended for mounting, heat transfer, mechanical protection and a smoother finished lighting effect.
The strip is rated IP67, but it is not intended for permanent underwater use. Submerged applications require products specifically designed for continuous immersion.
Yes, it can be used with a compatible 24V single-color dimmer or control system. The controller capacity must match the total connected load.
3000K is often selected for warm architectural environments, while 4000K provides a more neutral and modern appearance.
Please provide the required color temperature, quantity, strip length, installation environment, control method, cable requirements and waterproof connection requirements.
