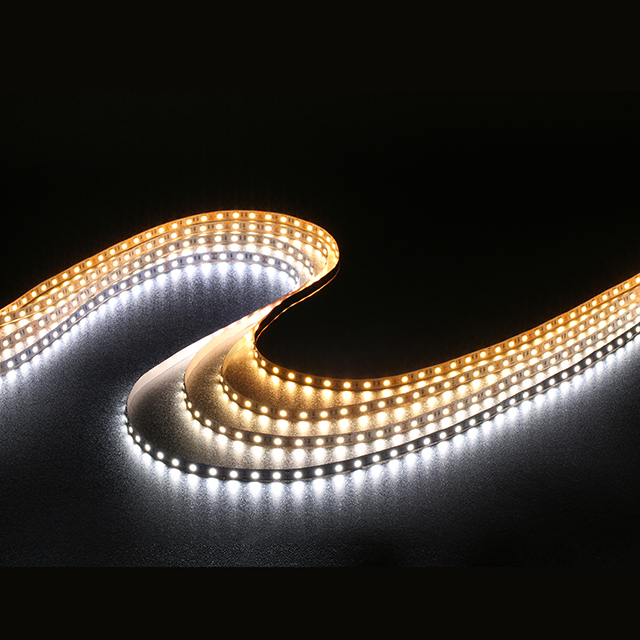

Luna Series are our middle power (10-20W) LED flexible strips. Compared with our Zodiac Series, Luna adopt advanced technique enhancing the brightness especially on the upgraded SMD 2835 LEDs. At the same time, you will see higher LED density like 120LEDs and 140LEDs in the Luna Series which will not only brings more lumen output but also more smooth and uniform light distribution.
| LED Type | SMD5050 |
| LED Quantity | 60 LEDs Per Meter |
| CRI | ≥90 |
| Color Temperature | 2700K / 3000K / 4000K / 6500K |
| Voltage | 12 VDC / 24VDC |
| Wattage | 14.4W/M |
| Efficiency | 90LM/W |
| Max Lumen @ 4000K | 1315LM/M |
| PCB Width | 10MM |
| Copper Quantity | 2Oz. |
| Cutting Length | 50MM @ 12V 100MM @ 24V |
| IP Rating | IP43 / IP65 / IP66 / IP67 / IP68 / IPnano |
| Beam Angle | 120 Degree |
| Temperature, Operating, Minimum | -35℃ |
| Temperature, Operating, Maximum | 60℃ |
| Maximum Recommended Length | 5 Meters |
| Lifetime | 50,000 Hours |
| Certification | UL-E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
| Adhesion | TESA 4965 / 3M Back Tape |
