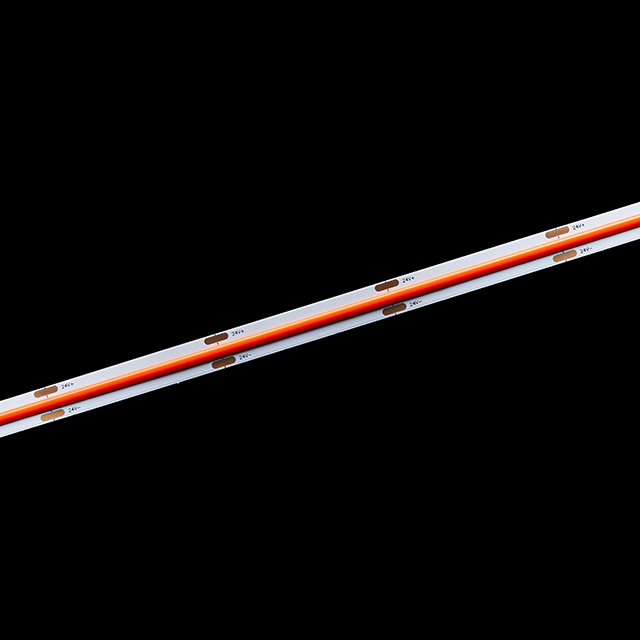

COB is the new technology for flexible LED strip, comparing with traditional surface mount technology, COB is chips being packaged inside a bracket, bare chip are directly mounted on board in COB tech. By that way, heat issue will be eased somehow. Another biggest advantage for COB products is that you will not see dots and dark space through fixtures.
LED Type
COB (Chip on Board)
LED Quantity
480 Chips Per Meter
CRI
≥90
Color Temperature
2700K 3000K 4000K 6500K Red Green Blue
Voltage
12VDC 24 VDC
Wattage
5W/M 10W/M 15W/M
Efficiency
100LM/W
Max Lumen
480LM/M
PCB Width
8mm
Copper Quantity
2Oz.
Cutting Length
25MM @ 12V; 50MM @ 24V
IP Rating
IP43 / IP65 / IP66 / IP67 / IP68
Beam Angle
180 Degree
Temperature, Operating, Minimum
-35℃
Temperature, Operating, Maximum
60℃
Maximum Recommended Length
5 Meters
Lifetime
50,000 Hours
Certification
UL-E464546, CE, RoHS, FCC, C-tick
Warranty
3 Years
Adhesion
TESA4965 / 3M Back Tape
COB is the new technology for flexible LED strip, comparing with traditional surface mount technology, COB is chips being packaged inside a bracket, bare chip are directly mounted on board in COB tech. By that way, heat issue will be eased somehow. Another biggest advantage for COB products is that you will not see dots and dark space through fixtures.
