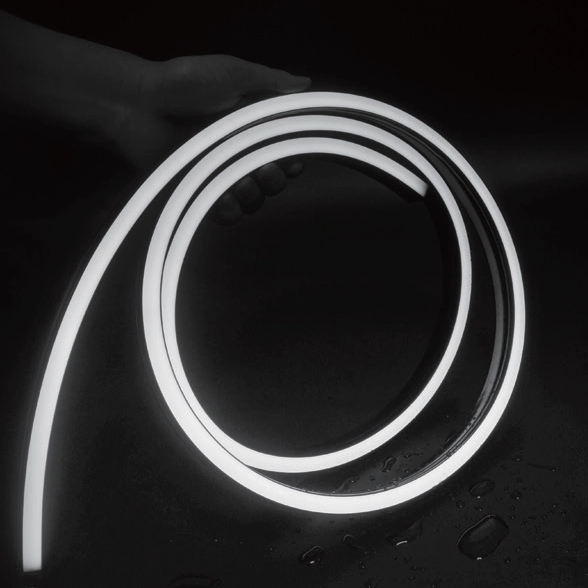

Black Horizontal Bending 12x20mm Neon

Wattage:
5W/M
10W/M
15W/M
Voltage:
24V
Color Temperature:
2700K
3000K
3500K
4000K
5000K
6500K
Red
Green
Blue
Yellow
Orange
Pink
Availability:
Inquire

LED Type2835
CRI>90
ColorWhite;Green;Blue;Yellow;Pink;Orange
Voltage24 VDC
Wattage5W/M;10W/M;15W/M
Max Lumen @ 5000K 10W110 LM/M

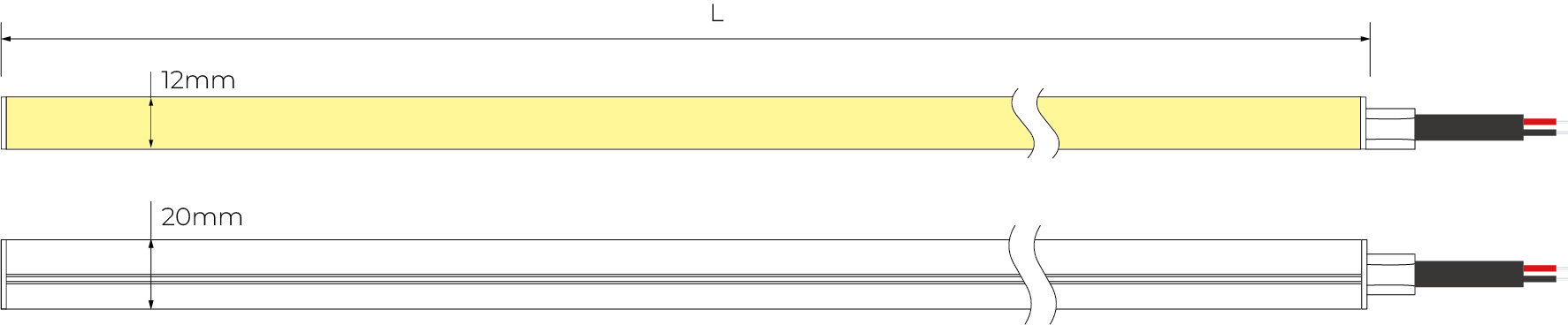

Dimension12x20mm   (W*H)
Cutting

50mm

Bending TypeHorizontal
Min Bend150mm
IP RatingIP67
Beam Angle91.1degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum45℃
Maximum Recommended Length

CV   type 5 meters;

CC   type 17 meters;

CertificationUL - E464546, CE, C-tick
Warranty5 Years


资源 2

资源 3 资源 4
Min Bending Diameter Cross Section(mm)


Aluminium Profile

(1m/2m/3m)

 资源 7

资源 14
Aluminium Mounting Clips
(2cm)		 资源 9
Flexible Profile
(1m)		 资源 10 资源 17
PC Profile
(1m/2m/3m)		 资源 12 资源 19


download Black Horizontal Bending 12x20mm Neon.pdf
