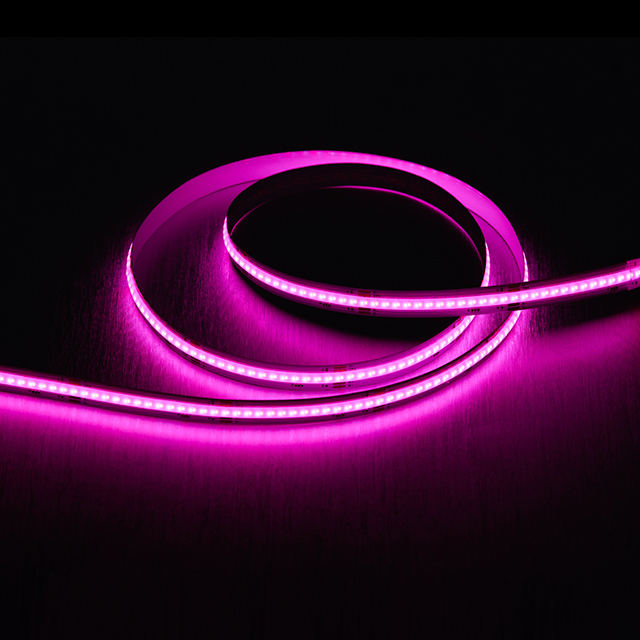

New technology for flexible LED strip, it is chip on board (COB). Compared with traditional surface mount technology, chips being packaged inside a bracket, bare chip are directly mounted on board in COB tech. By that way, heat issue will be eased somehow. Another biggest advantage for COB products is that you will not see dots and dark space through fixtures.
LED Type
COB (Chip on Board)
LED Quantity
840 Chips Per Meter
Color
RGB
Voltage
24VDC
Wattage
15W/M
PCB Width
10mm
Copper Quantity
2Oz.
Cutting Length
50MM @ 24V
IP Rating
IP43 / IP65 / IP66 / IP67 / IP68
Beam Angle
180 Degree
Temperature, Operating, Minimum
-35℃
Temperature, Operating, Maximum
60℃
Maximum Recommended Length
5 Meters
Lifetime
50,000 Hours
Certification
UL-E464546, CE, RoHS, FCC, C-tick
Warranty
3 Years
Adhesion
TESA 4965 / 3M Back Tape
New technology for flexible LED strip, it is chip on board (COB). Compared with traditional surface mount technology, chips being packaged inside a bracket, bare chip are directly mounted on board in COB tech. By that way, heat issue will be eased somehow. Another biggest advantage for COB products is that you will not see dots and dark space through fixtures.
