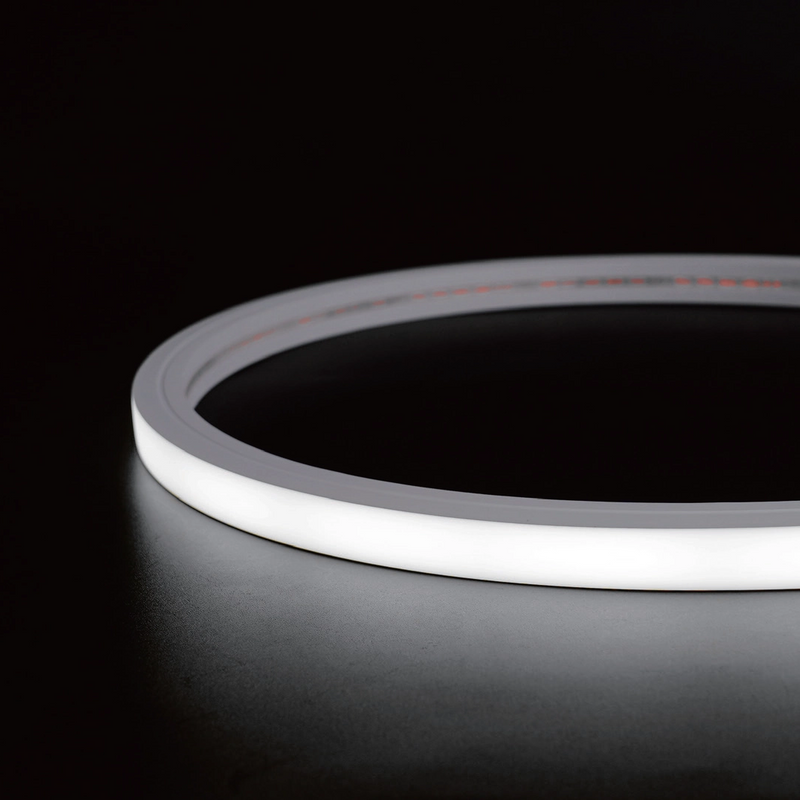

AC230V Vertical Bending 16x15mm Neon

The AC230V Vertical Bending 16x15mm Neon Flex is a powerful and flexible lighting solution designed for creative illumination and architectural decoration. With its vertical bending design, this neon strip allows detailed curves, sharp angles, and complex patterns that are ideal for signage, lettering, and artistic installations.
Wattage:
5W/M
10W/M
12W/M
Voltage:
24V
Color Temperature:
1800K
2400K
2700K
3000K
3500K
4000K
5000K
6500K
Availability:
Inquire

LED Type2835
CRI>90
ColorWhite
Voltage24 VDC
Wattage5W/M;10W/M;12W/M
Max Lumen @ 4000K 12W693 LM/M
Dimension16x15mm   (W*H)
Cutting

100mm

Bending Type3D
Min Bend200mm
IP RatingIP67
Beam Angle111.0degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum45℃
Maximum Recommended Length

CV   type 30 meters;

CertificationUL - E464546, CE, C-tick
Warranty5 Years

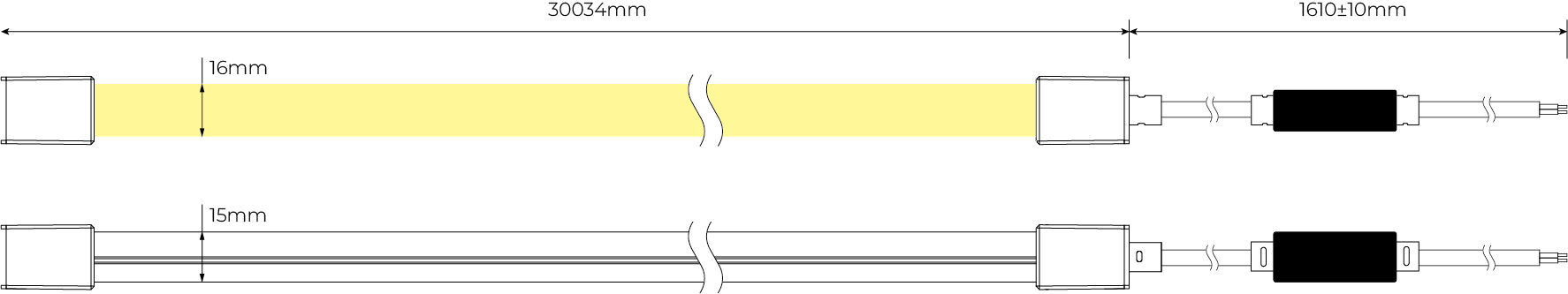

资源 2

资源 3 资源 4

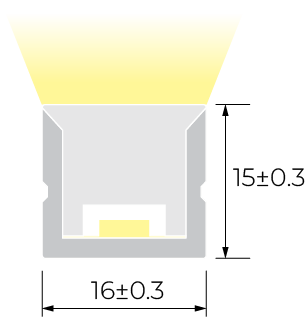

Min Bending Diameter Cross Section(mm)


Aluminium Profile
(1m/2m/3m)		 资源 7 资源 8
Aluminium Mounting Clips
(2cm)		 资源 9
Flexible Profile
(1m)		 资源 10 资源 11
PC Profile
(1m/2m/3m)		 资源 12 资源 13


download AC230V Vertical Bending 16x15mm Neon.pdf
