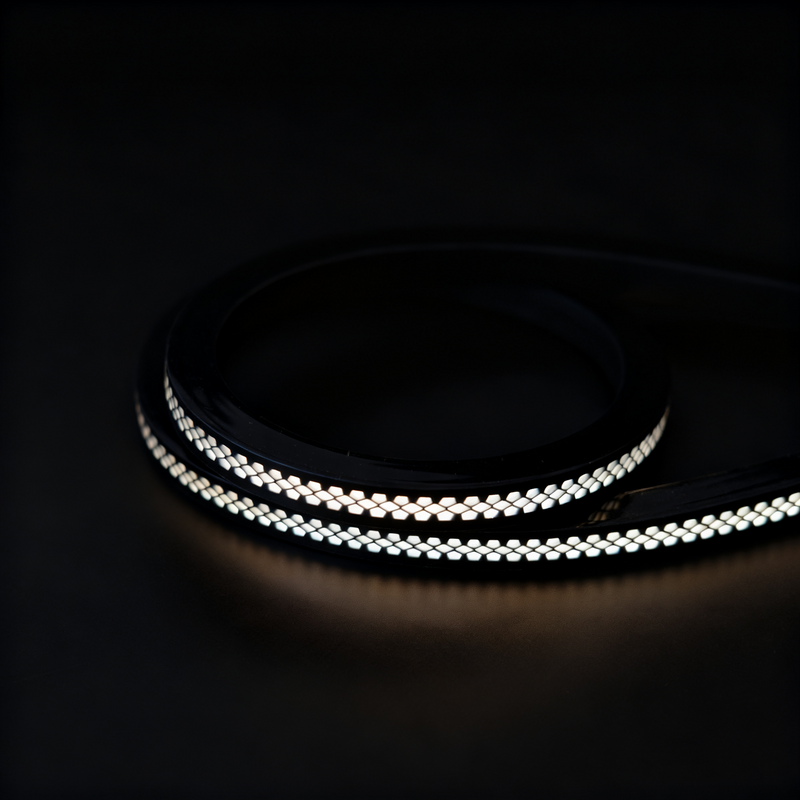

Anti-glare Black Vertical Bending 16x17mm Neon

Wattage:
5W/M
10W/M
Voltage:
24V
Color Temperature:
1800K
2100K
2400K
2700K
3000K
3500K
4000K
5000K
6500K
Availability:
Inquire

LED Type2835
CRI>90
ColorWhite
Voltage24 VDC
Wattage5W/M;10W/M
Max Lumen @ 4000K 10W33 LM/M

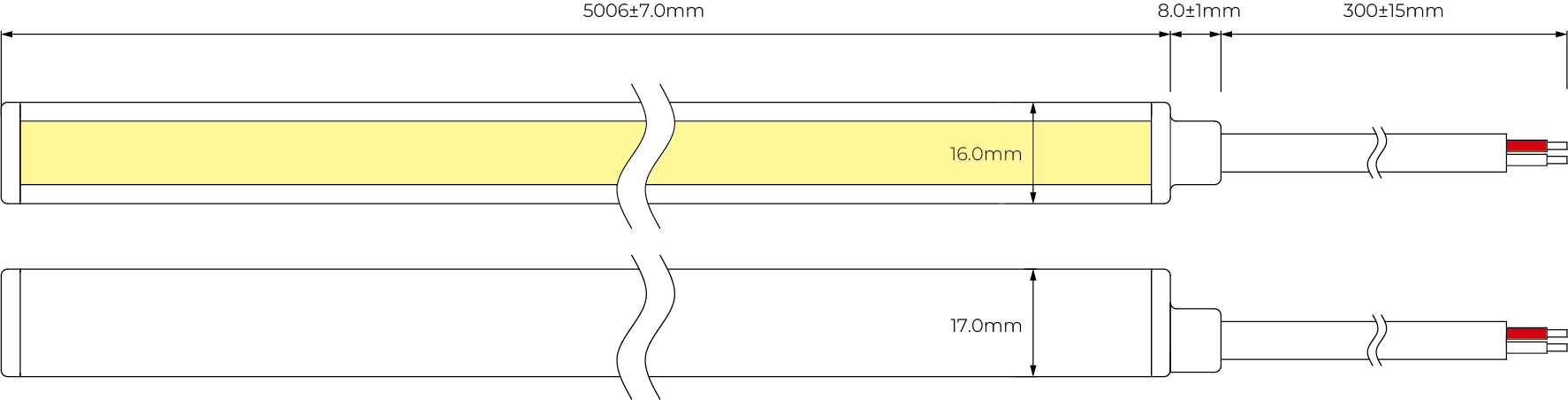

Dimension16x17mm   (W*H)
Cutting

50mm

Bending TypeVertical

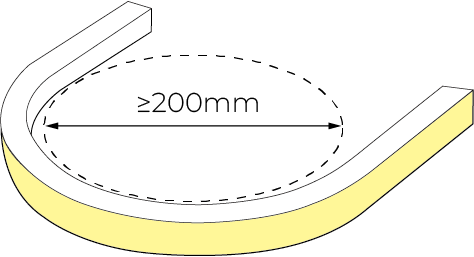

Min Bend200mm
IP RatingIP67
Beam Angle61.7degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum45℃
Maximum Recommended Length

CV   type  7   meters;

CV   type 15 meters;

CertificationUL - E464546, CE, C-tick
Warranty5 Years


资源 2

资源 3 资源 4

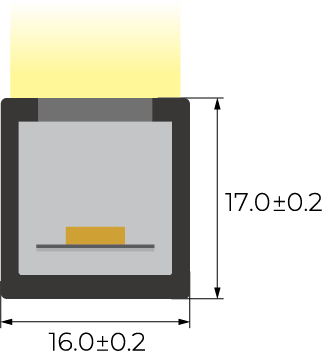

Min Bending Diameter Cross Section(mm)

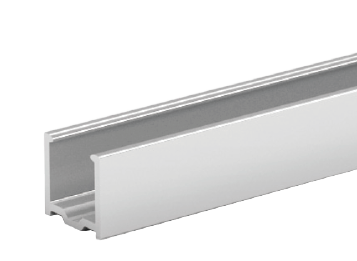

Aluminium Profile

(1m/2m/3m)

 资源 7

资源 10
Aluminium Mounting Clips
(2cm)		 资源 9
Flexible Profile
(1m)		 资源 10 资源 13
PC Profile
(1m/2m/3m)		 资源 12 资源 15

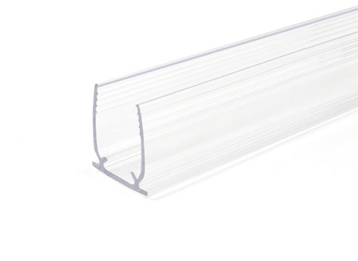

PC Profile
(1m/2m/3m)		 资源 16 资源 17

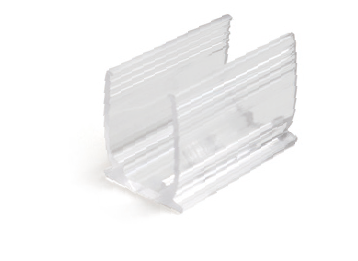

PC Mounting Clips
(2cm)		 资源 18


download Anti-glare Black Vertical Bending 16x17mm Neon.pdf
