Vertical Bending 30x20mm Neon

Watt:
5W/M
6.66W/M
10W/M
20W/M
Voltage:
24V
CCT:
2100K
2400K
2700K
3000K
3500K
4000K
5000K
6500K
Red
Green
Blue
Yellow
Orange
Pinnk
6000K
2700K+6000K
RGB
RGBW
Availability:
Inquire

LED   TypeSMD2835/5050/5060
CRI>90
ColorWhite,Red,Green,Blue,Yellow,Orange,Pink,RGB,RGBW
Voltage24VDC
Wattage5W/M 6.6W/M 10W/M 20W/M
Max Lumen @ 5000K  20W1300LM/M

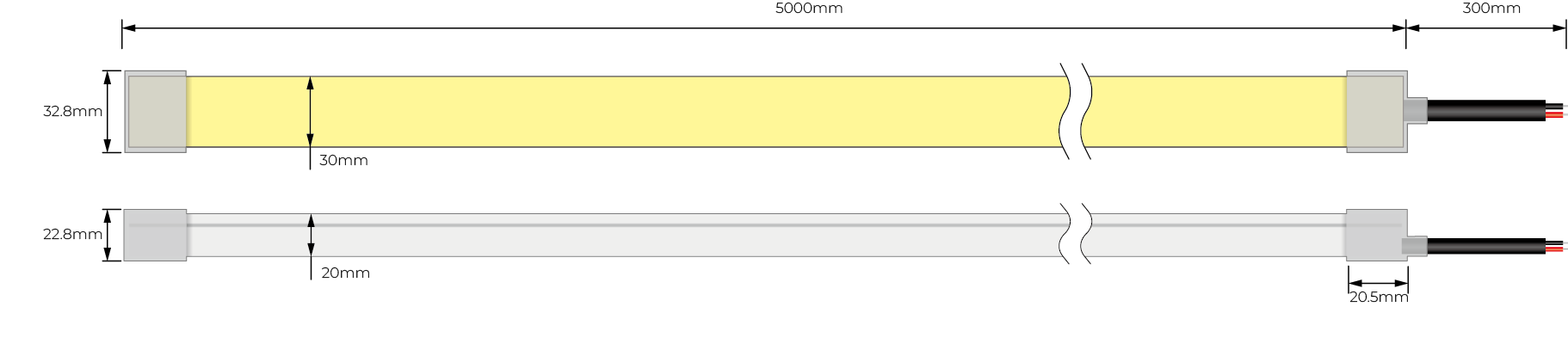

Dimension30x20mm (W*H)
Cutting

50mm @ single color

41.66mm@CCT Tunable/RGBRGB

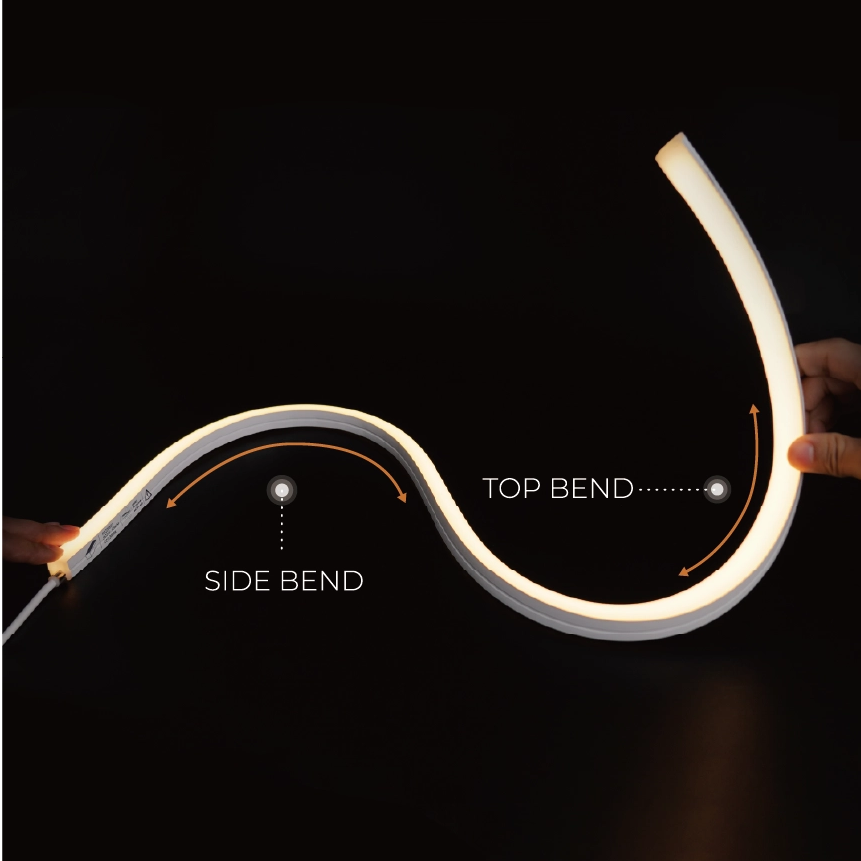

Bending TypeVertifical Bending

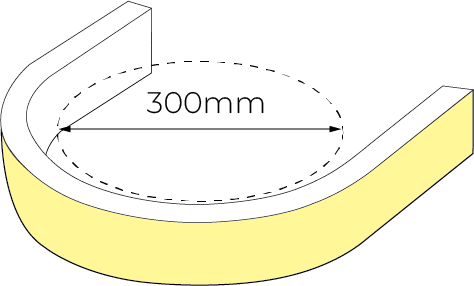

Min Bend300mm
IP RatingIP67
Beam Angle113.1 degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum55℃
Maximum Recommended LengthCV type 5 meters; CC type 9 meters@20W
CertificationUL-E464546, CE, RoHS, FCC, C-tick
Warranty5 Years


资源 2

资源 3

 资源 4

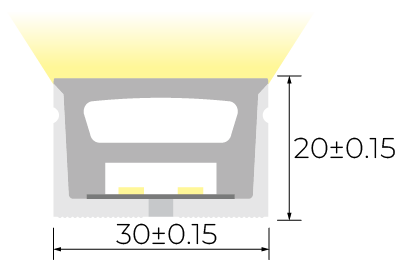

Min Bending Diameter Cross Section(mm)

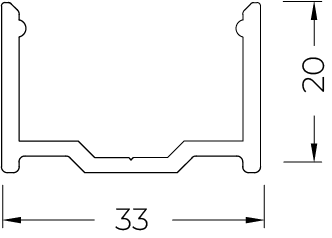

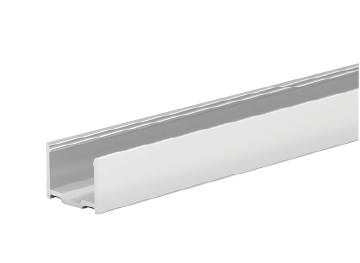

Aluminium Profile
(1m/2m/3m)		 资源 11 资源 12
Aluminium Mounting clips
（2cm）		 资源 13


download Vertical Bending 30x20mm Neon.pdf
