Vertical Bending D16mm Neon

Watt:
3.3W/M
4.8W/M
5W/M
10W/M
12.5W/M
Voltage:
24V
CCT:
2100K
2400K
2700K
3000K
3500K
4000K
5000K
6500K
Red
Green
Blue
Orange
Yellow
Pink
6000K
2700K+6000K
RGB
Availability:
Inquire

LED   TypeSMD2835/3014/4040/5050
CRI>90
ColorWhite,Red,Green,BlueYellow,Orange,Pink,RGB,RGBW
Voltage24VDC
Wattage3.3W/M 4.8W/M 5W/M 10W/M 12.5W/M
Max Lumen @ Green  10W780LM/M
Dimension16x16mm (W*H)
Cutting50mm @ single color/CCT Tunable/RGB

100mm @ RGB Pixel

8.33mm@Free Cut

Bending TypeVertical Bending
Min Bend200mm
IP RatingIP67
Beam Angle199.3 degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum50℃
Maximum Recommended LengthCV type 5 meters; CC type 17 meters@10W
CertificationUL-E464546, CE, RoHS, FCC, C-tick
Warranty5 Years


资源 2

资源 3 资源 4

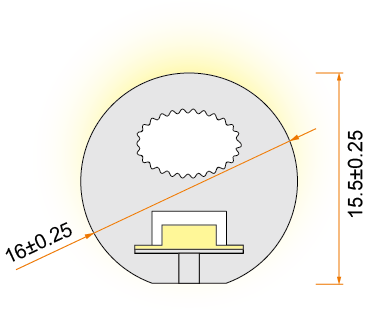

Min Bending Diameter Cross Section(mm)

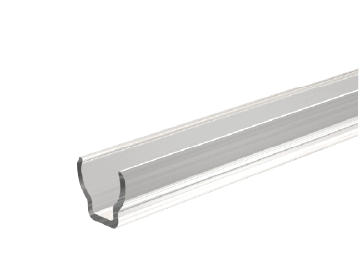

PC Profile  (1m/2m/3m) 资源 7 资源 8

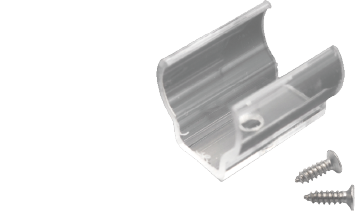

PC Mounting Clips  (2cm) 资源 9


download Vertical Bending D16mm Neon.pdf
