Zodiac Series are our low power (<10W/M) product version and economic solution for your choice in retail area and for furniture lighting, you can find flexible strip designed for both indoor and outdoor application for example, IP68 which is silicone tube with silicone filling inside. You can also find single color like ordinary red, green and blue which could be for garden decoration.
| LED Type | SMD2835 |
| LED Quantity | 120LEDs Per Meter |
| CRI | ≥90 |
| Color Temperature | 2700K / 3000K / 4000K / 6500K |
| Voltage | 12VDC / 24VDC |
| Wattage | 9.6W/M |
| Efficiency | 107LM/W |
| Max Lumen @ 4000K | 966LM/M |
| PCB Width | 5MM |
| Copper Quantity | 2 Oz. |

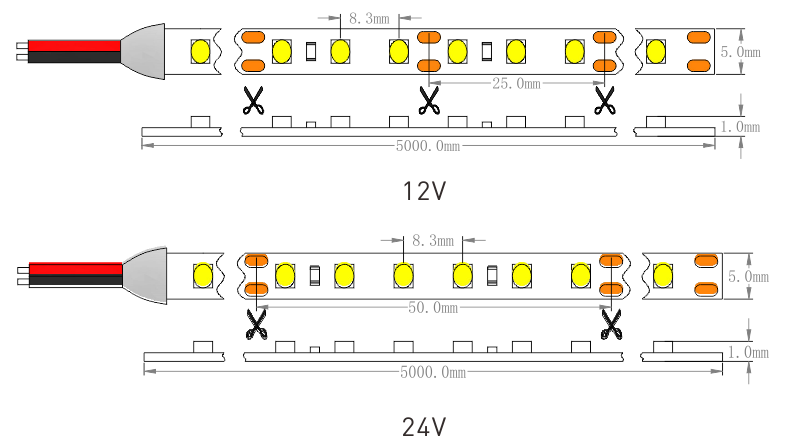

| Cutting Length | 25MM @ 12V 50MM @ 24V |
| IP Rating | IP43 / IP67 / IPnano |
| Beam Angle | 120 Degree |
| Temperature Operating Minimum | -35℃ |
| Temperature Operating Maximum | 60℃ |
| Maximum Recommended Length | 5 Meters |
| Lifetime | 50,000 Hours |
| Certification | UL-E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
| Adhesion | TESA 4965 / 3M Back Tape |
Zodiac Series are our low power (<10W/M) product version and economic solution for your choice in retail area and for furniture lighting, you can find flexible strip designed for both indoor and outdoor application for example, IP68 which is silicone tube with silicone filling inside. You can also find single color like ordinary red, green and blue which could be for garden decoration.
| LED Type | SMD2835 |
| LED Quantity | 120LEDs Per Meter |
| CRI | ≥90 |
| Color Temperature | 2700K / 3000K / 4000K / 6500K |
| Voltage | 12VDC / 24VDC |
| Wattage | 9.6W/M |
| Efficiency | 107LM/W |
| Max Lumen @ 4000K | 966LM/M |
| PCB Width | 5MM |
| Copper Quantity | 2 Oz. |
| Cutting Length | 25MM @ 12V 50MM @ 24V |
| IP Rating | IP43 / IP67 / IPnano |
| Beam Angle | 120 Degree |
| Temperature Operating Minimum | -35℃ |
| Temperature Operating Maximum | 60℃ |
| Maximum Recommended Length | 5 Meters |
| Lifetime | 50,000 Hours |
| Certification | UL-E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
| Adhesion | TESA 4965 / 3M Back Tape |
