| LED Type | SMD2835 |
| CRI | >90 |
| Color | White |
| Voltage | 24VDC |
| Wattage | 10W/M |
| Max Lumen @ 3500K/6000K 10W | 950LM/M |
| Dimension | 12x12mm (W*H) |
| Cutting | 50mm @ single color |
| Bending Type | Vertifical Bending |
| Min Bend | 150mm |
| IP Rating | IP67 |
| Beam Angle | 112.1 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55 ℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 8 meters@10W |
| Certification | UL-E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
| LED Type | SMD2835 |
| CRI | >90 |
| Color | White |
| Voltage | 24VDC |
| Wattage | 10W/M |
| Max Lumen @ 3500K/6000K 10W | 950LM/M |
| Dimension | 12x12mm (W*H) |
| Cutting | 50mm @ single color |
| Bending Type | Vertifical Bending |
| Min Bend | 150mm |
| IP Rating | IP67 |
| Beam Angle | 112.1 degree |
| Temperature, Operating, Minimum | -25℃ |
| Temperature, Operating, Maximum | 55 ℃ |
| Maximum Recommended Length | CV type 5 meters; CC type 8 meters@10W |
| Certification | UL-E464546, CE, RoHS, FCC, C-tick |
| Warranty | 5 Years |
![资源 1]()
![资源 2]() | ![资源 3]() |

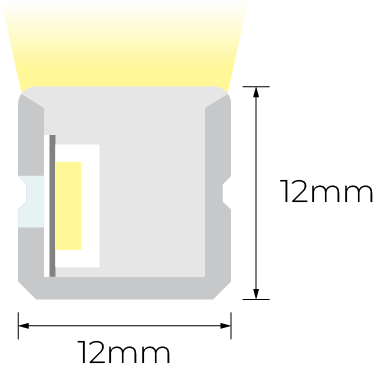

| Min Bending Diameter | Cross Section(mm) |
![资源 1]()
![资源 2]() | ![资源 3]() |
| Min Bending Diameter | Cross Section(mm) |
