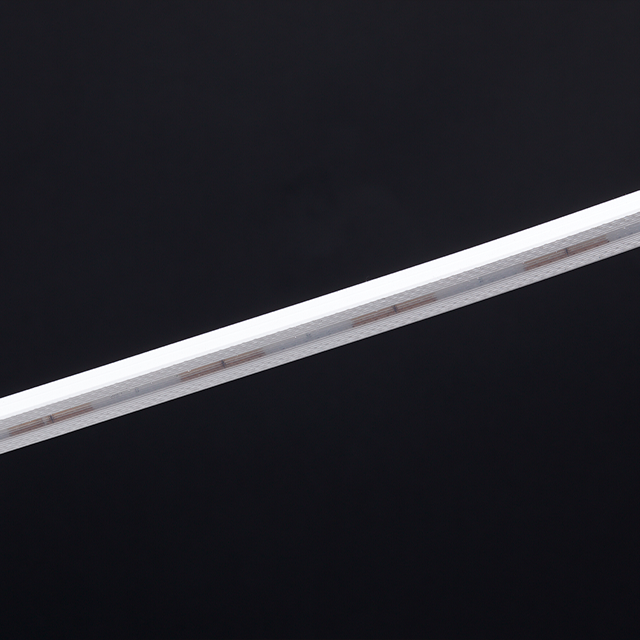

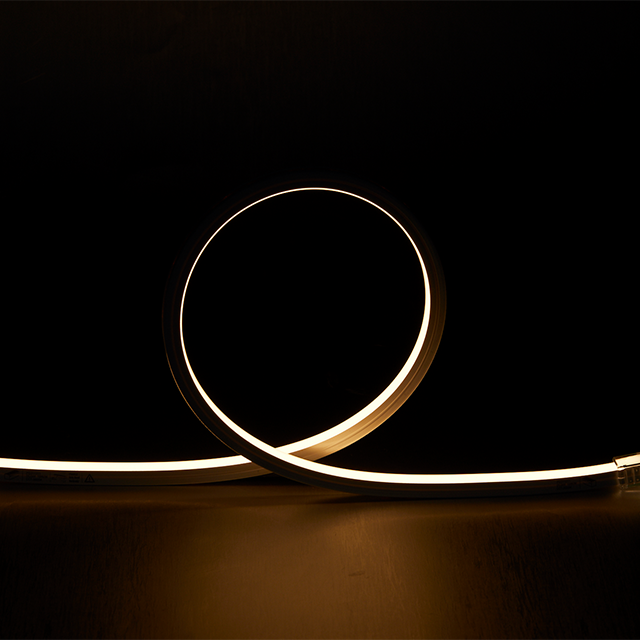

12x20mm Horizontal Bending Flexible LED Neon Strip Light

  • OL-2835NP-12x20mm15W-12024-W
CCT:
Watt:
Voltage:
Availability:

Not just lighting source but a complete lighting fixture. There are flexible choices with various shapes and bending direction including horizontal bending and parallel one. Besides the COB series, you will also not see dots in the neon light. Hope you will enjoy the smooth and comfortable experience.


LED TypeSMD2835/4040/5060
CRI>90
ColorWhite, Red, Green, Blue, Amber, Pink, RGB, RGBW
Voltage24 VDC
Wattage5W/M 10W/M 15W/M
Max Lumen @ 6500K  15W470LM/M
Dimension12x20mm (W*H)
Cutting

50mm@ single color

62.5mm @ multiple RGB/RGBW

Bending TypeHorizontal Bending
Min Bend200mm
IP RatingIP67
Beam Angle120 degree
Temperature, Operating, Minimum-25℃
Temperature, Operating, Maximum60 ℃
Maximum Recommended Length5 meters
CertificationUL - E464546, CE, RoHS, FCC, C-tick
Warranty3 Years





Dimension

1646631112(1)
